ASUS P4C800 Deluxe(P4-3.2C+)

[Revise(May2008)]
This PC got the problem for Power Supply and Windows Boot.

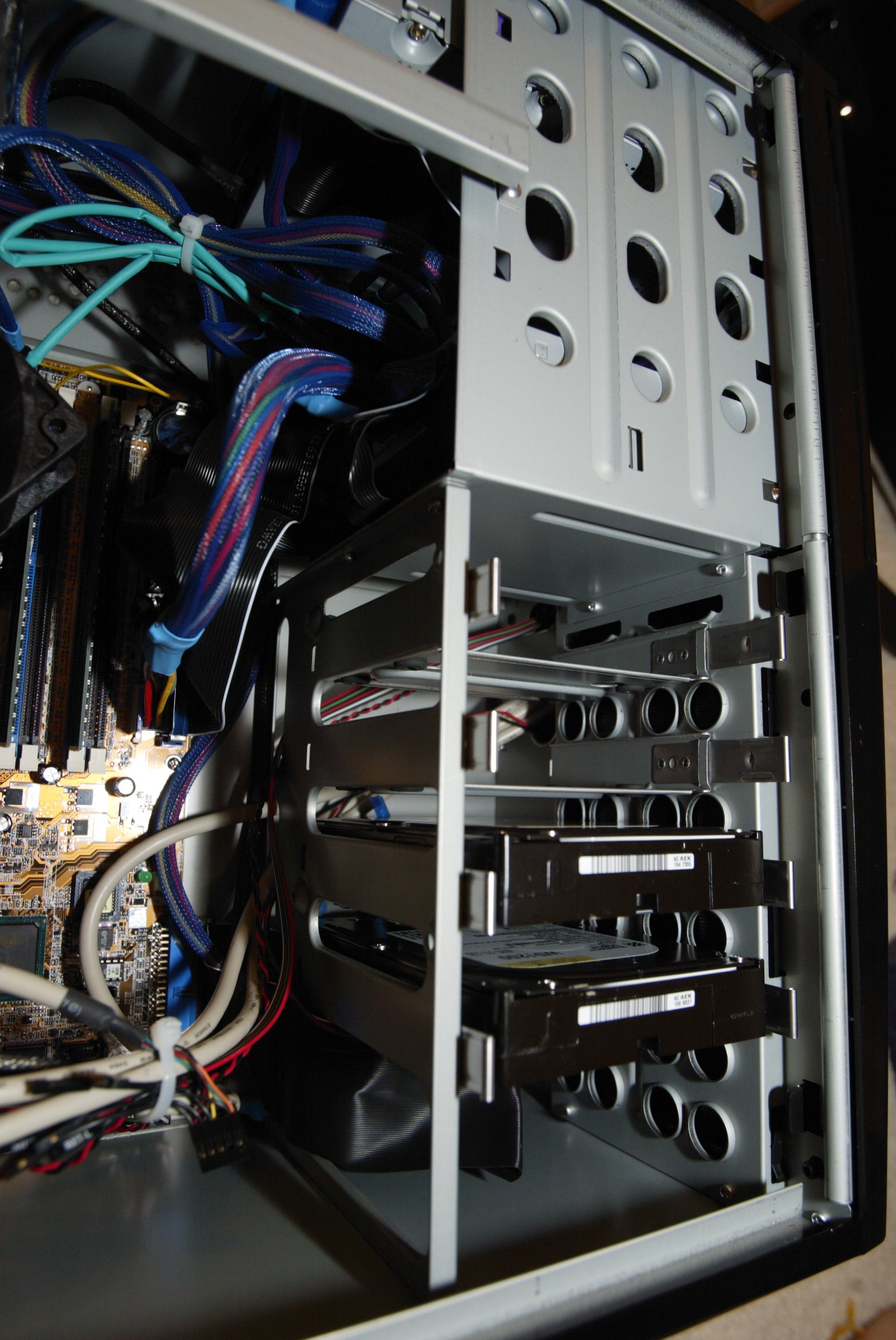

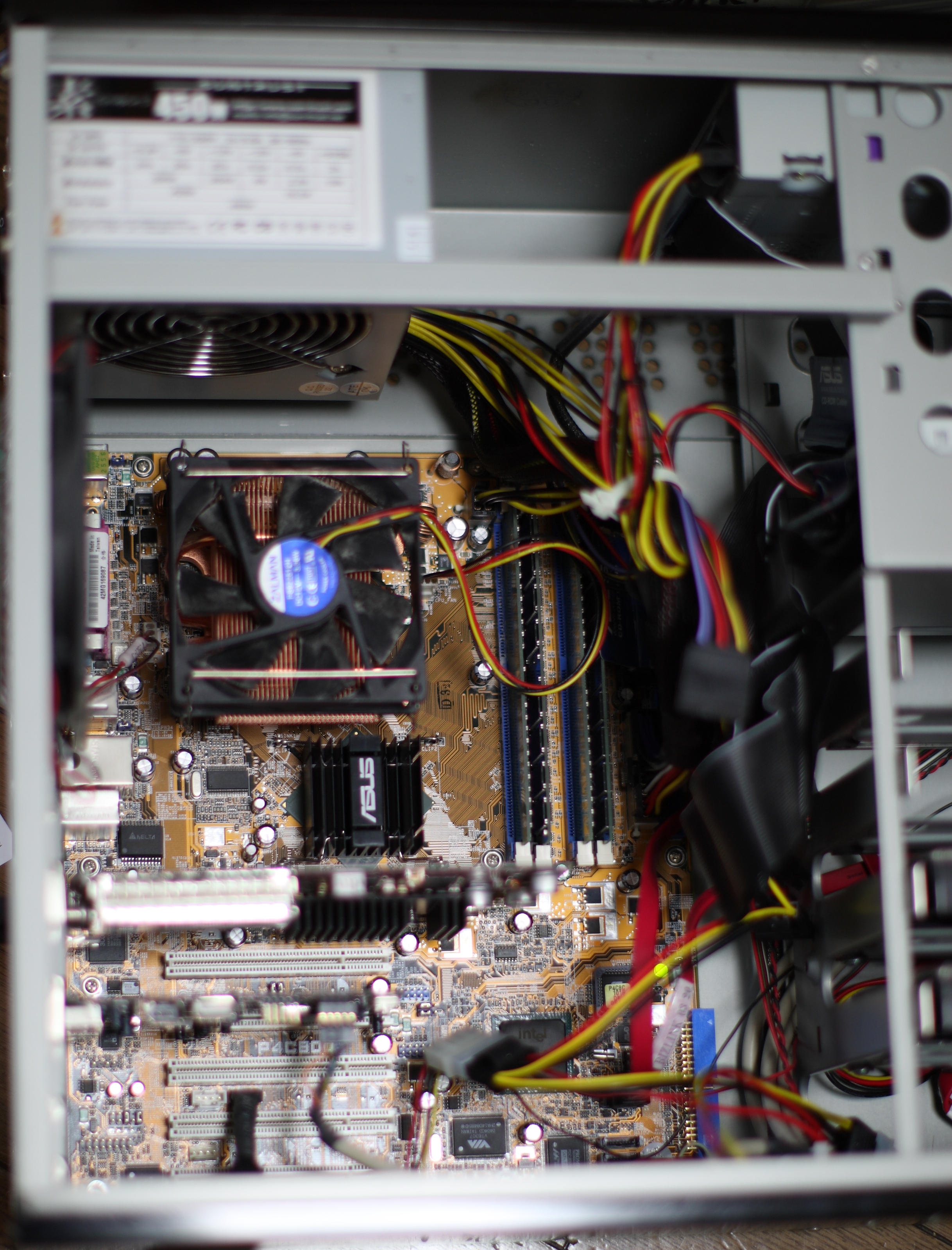

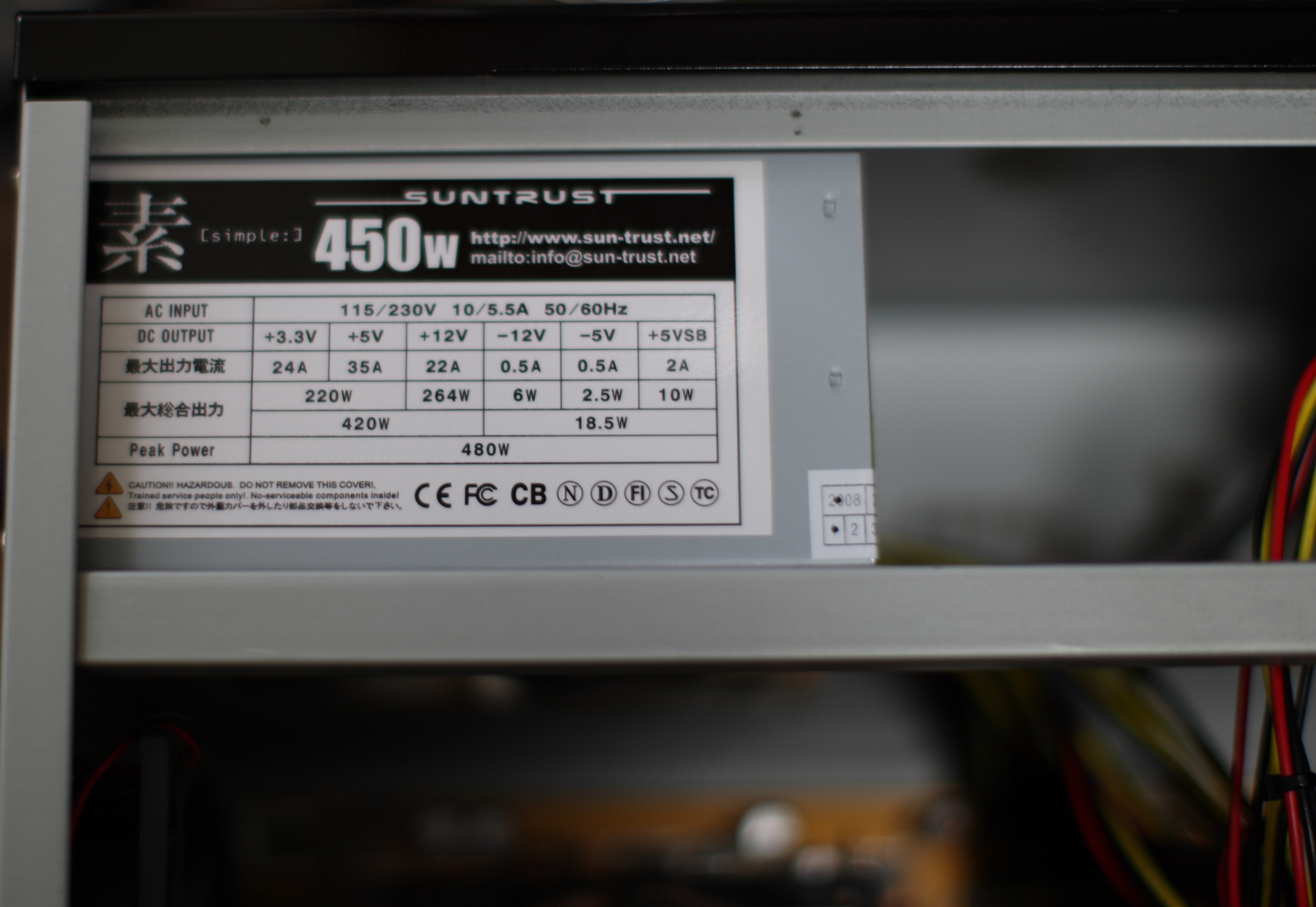

Then I changed and upgraded Hard Disk 1TB and Power Supply 450W, plus 1GB RAM which I have an extra.

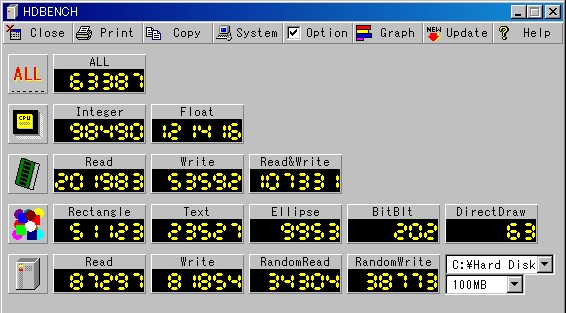

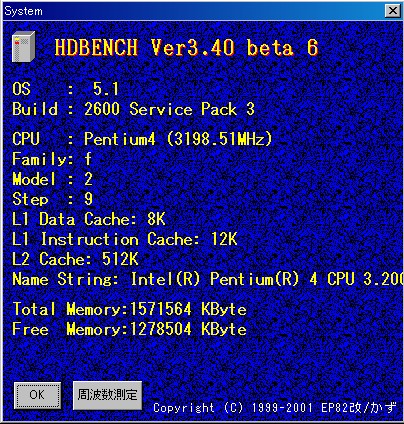

So I updated the pictures, parts list and HD-Bench data.

P4-3.2C IDE

[Original]
This PC is Multimedia Edit Machine with RAID0, burning 8xDVDR, watching TV, capturing Video and Video camera.

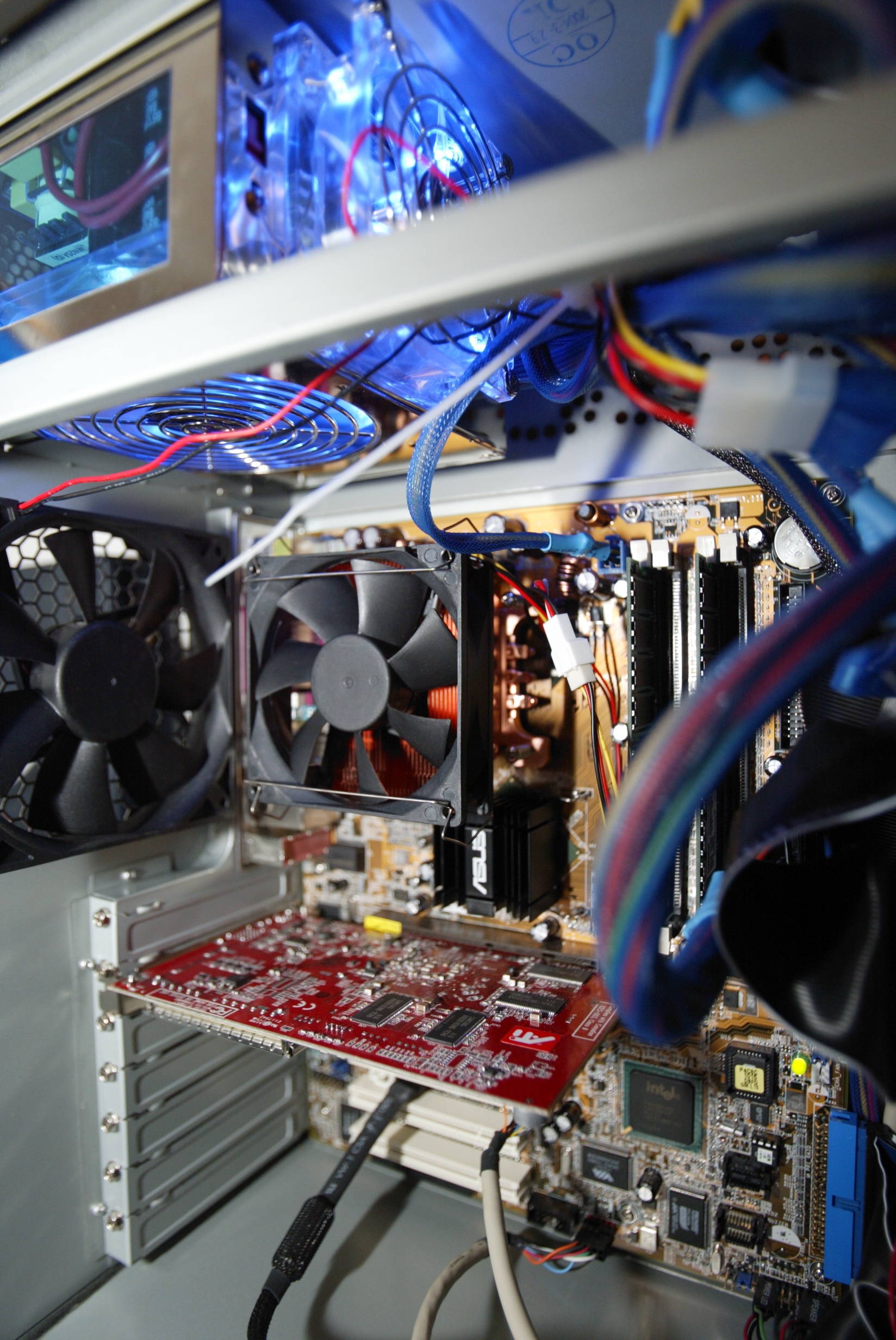

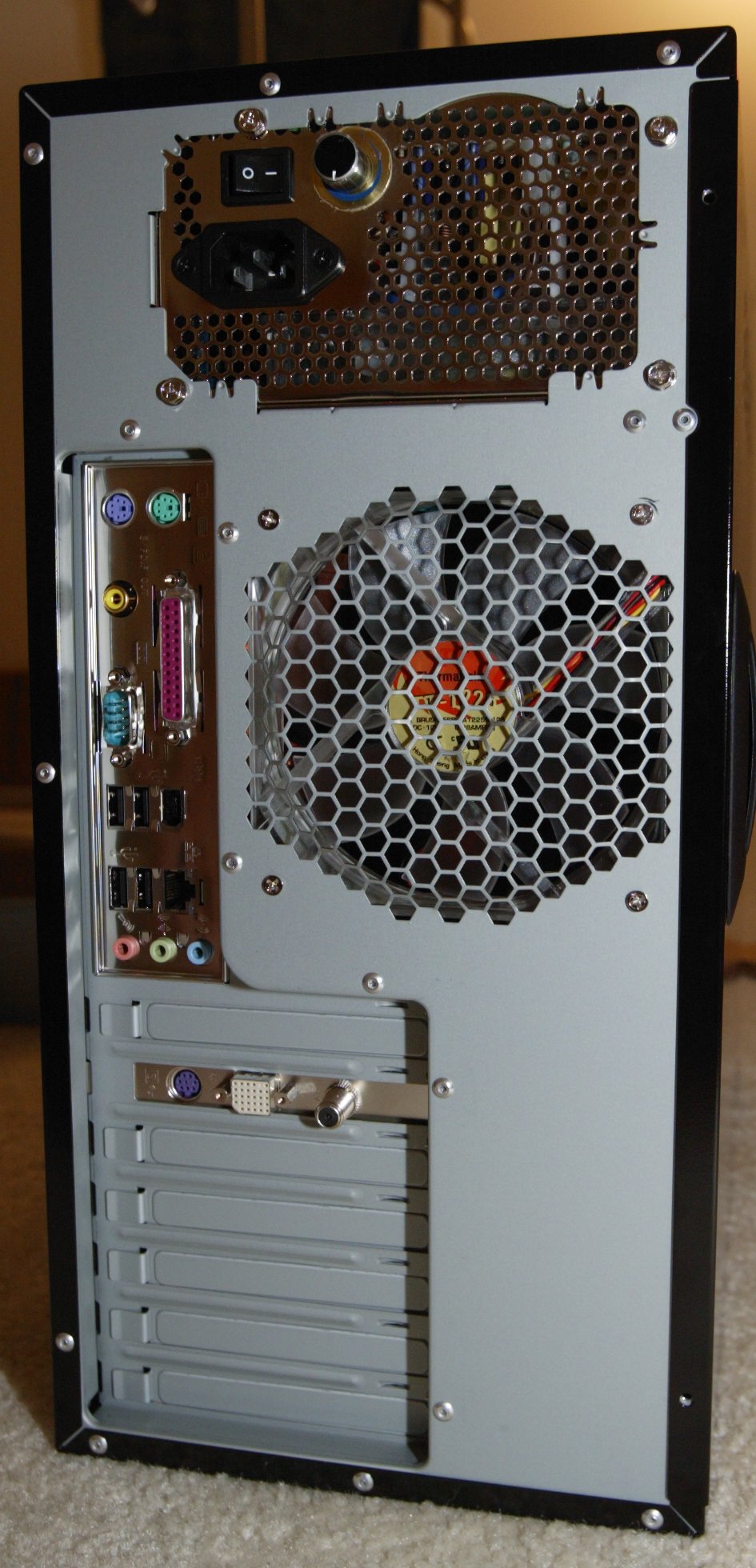

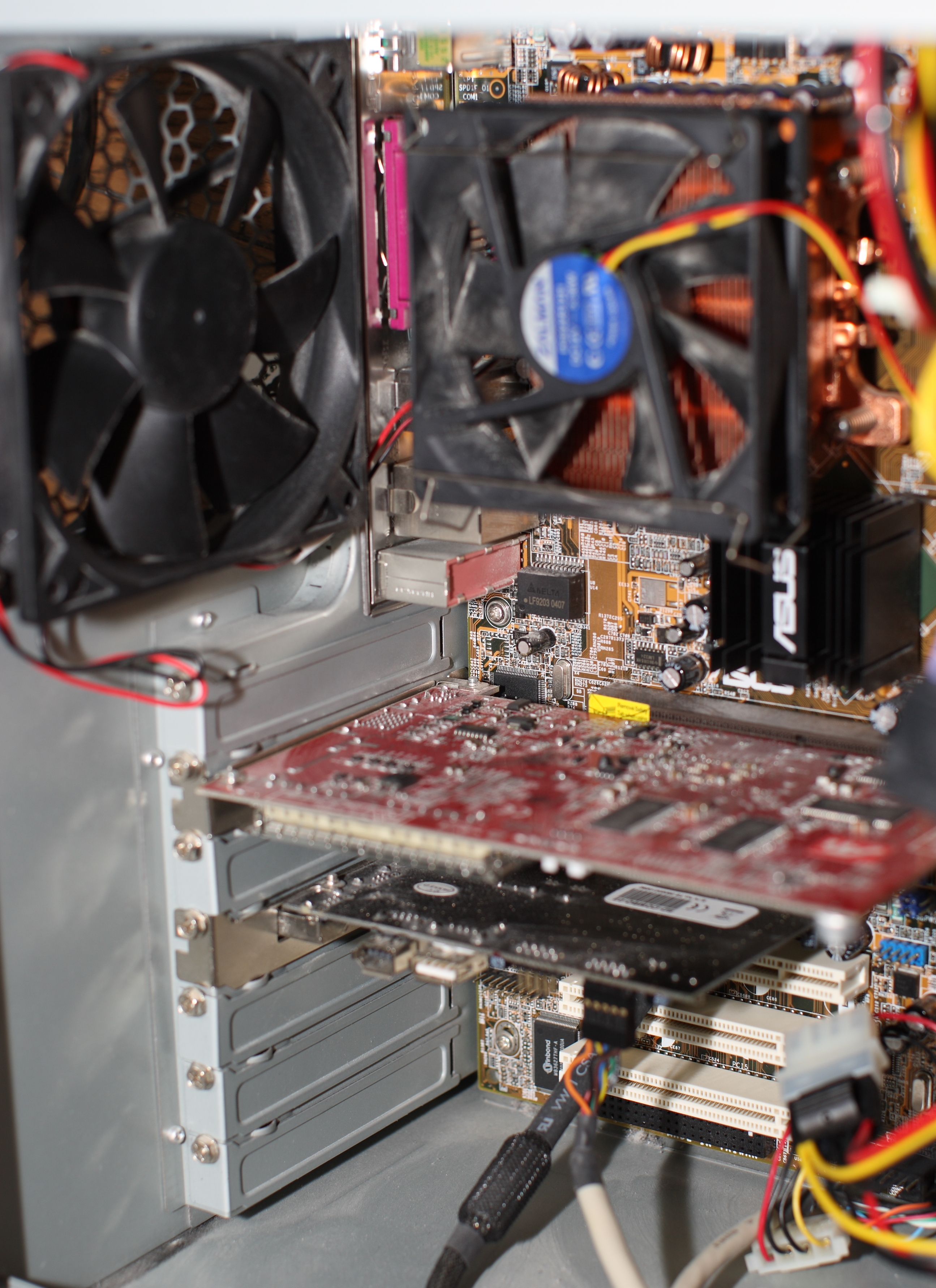

And also, it has a little unique feature, all fans are 120mm except an additional 80mm fan for Vigor 500W Power Supply(Dual fan).
I have an experience for P4C800 deluxe before, but it's not FSB800MHz. So I'm looking forward to making this.

Now in process. I got the RAID, IEEE1394 and air cooling problem. WRITE performan was OK, but the performance of READ was same as normal IDE. And IEEE1394 problem is about connection problem with camcorder. System and device recognition are OK on the system, however DV-AVI data communication was not OK. I mean there are so many drop frame was occured.
So I tried to change the system configuration, from RAID0 to normal IDE structure. Then the problem has been solved. However, I still don't know the root cause.
I will continue to pursue this problem even this project has been closed now.

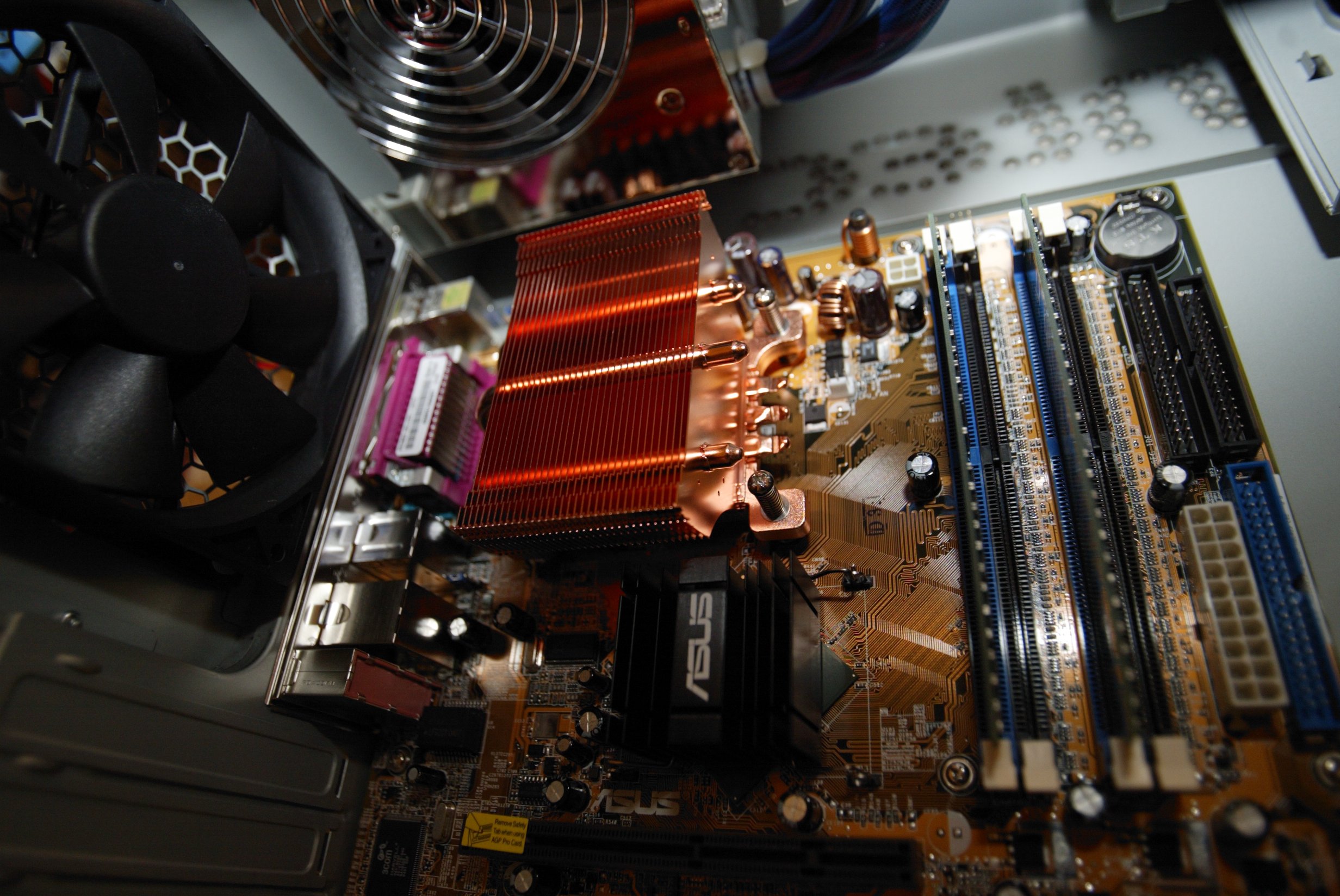

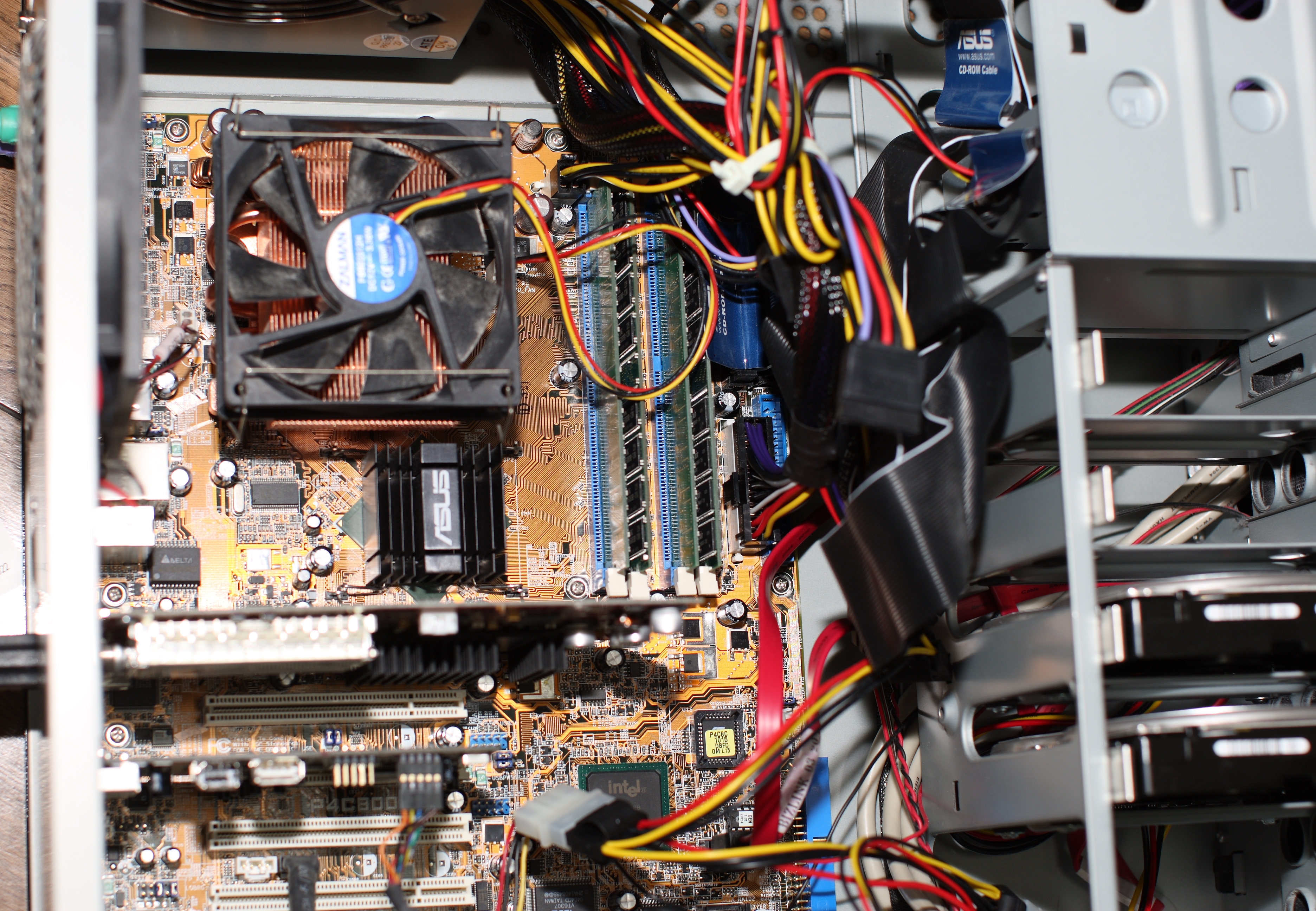

In addition, I supposed to use ZALMAN FB123 and PANAFLOW 120mm fan for air cooling system, but I checked the temp and I found it's not right. It's higher than I expected. So I changed from the structure to conventional way for Thermalright SP-94 with ZALMAN 92mm fan. Then now the cooling problem was solved.

Description	Price	Qty	Total
P4-3.2C	$266.00	1	$266.00
P4C800 Deluxe	$159.99	1	$159.99

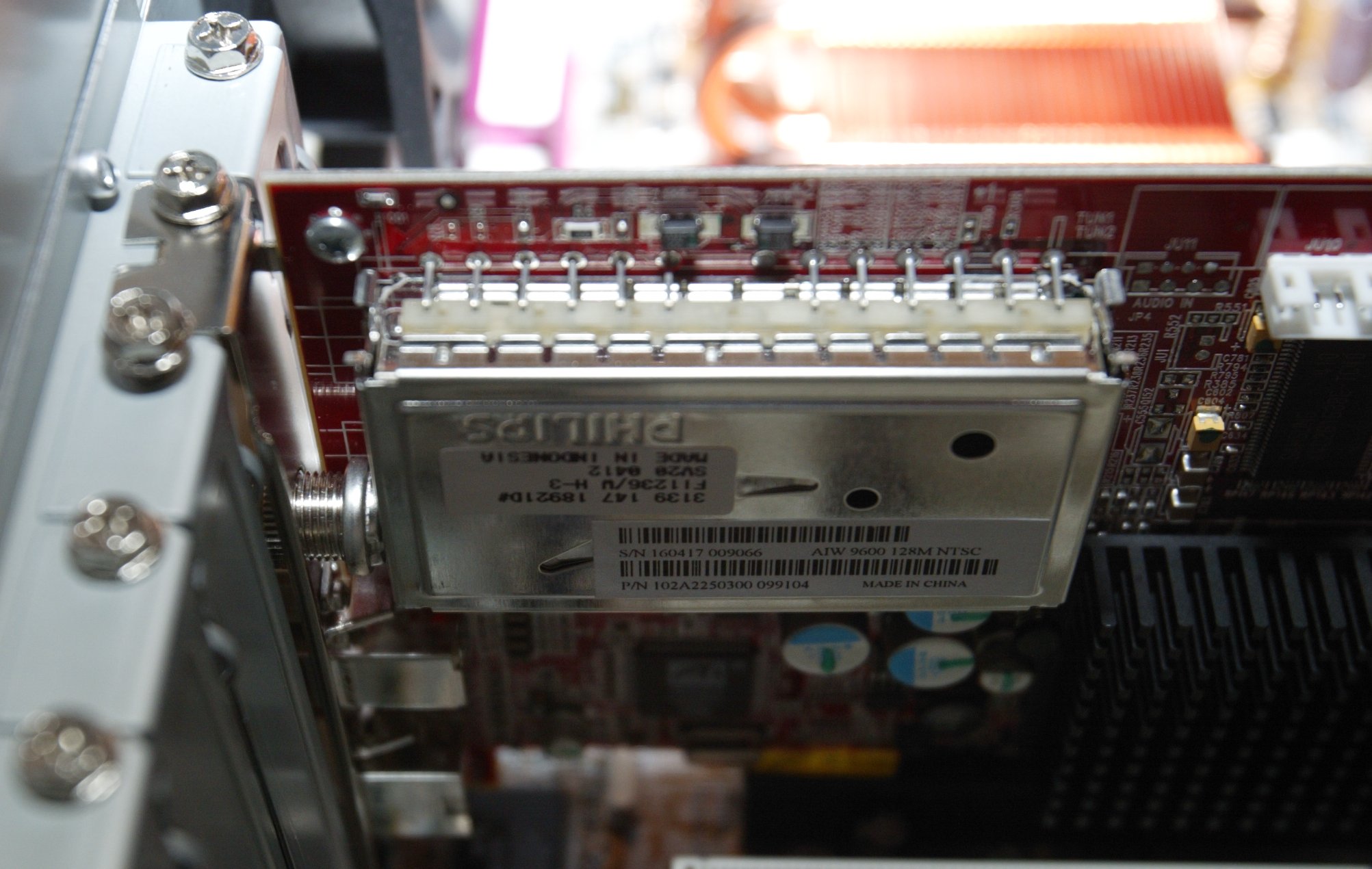

Radeon 9600 All-in-Wonder	$168.30	1	$168.30
RAM 512MB	$0.00	2	$0.00
KVR400X64C3AK2/512	$95.00	1	$95.00

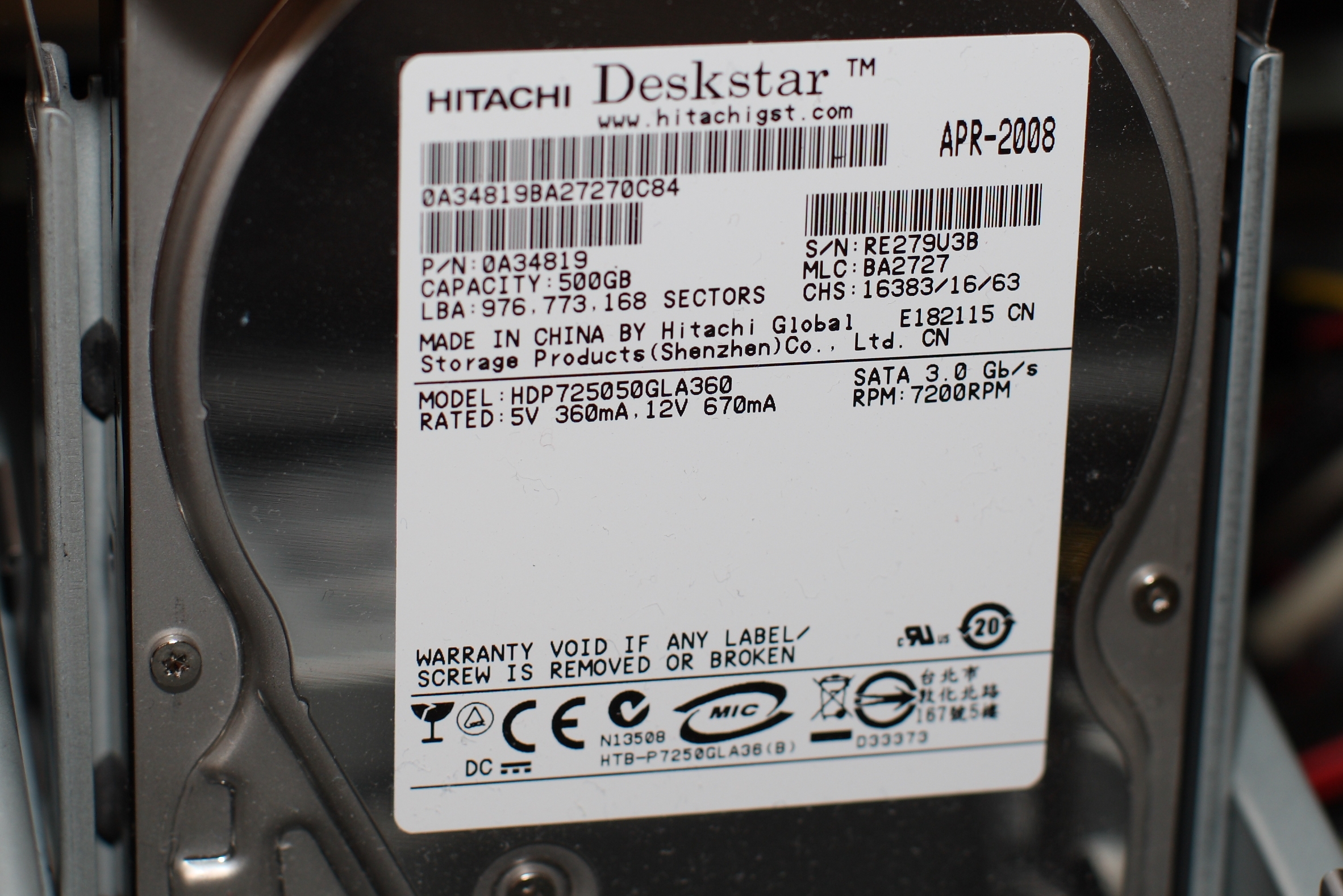

Hitachi Deskstar P7K500(500GB 16MB Cashe) HDP725050GLA360	$98.00	2	$196.00
Western Digital WD1200JB RETAIL(120GB 8MB Cashe)	$127.19	2	$254.38
NEC ND2500A Dual DVD+RW/+R DVD-RW/-R 16x/10x/40x CDRW	$70.99	1	$70.99

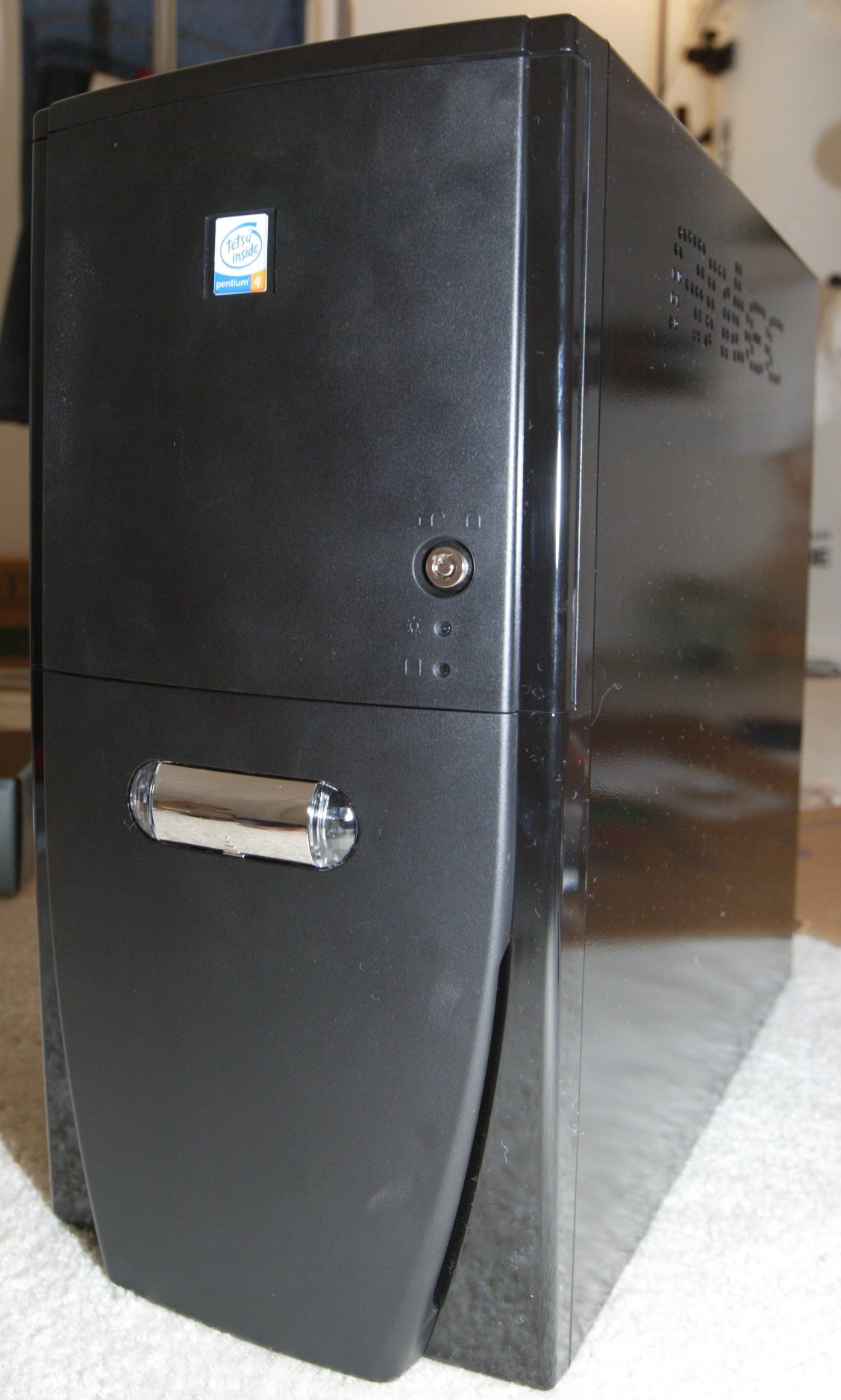

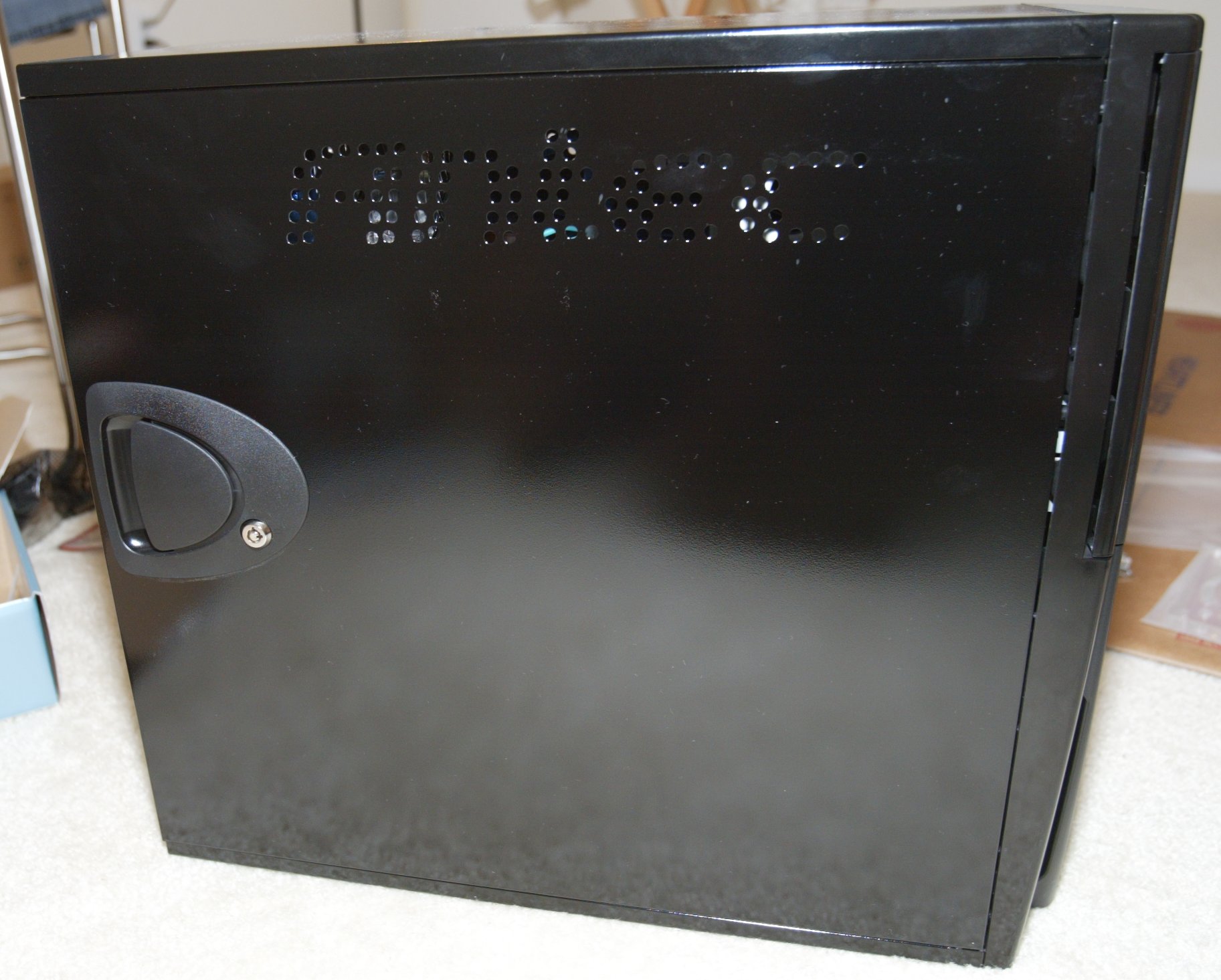

Antec Sonata	$47.00	1	$47.00
Suntrust STSPP-450	$50.00	1	$50.00
MGE Vigor500 500W	$64.00	1	$64.00
SONY Floppy MPF920	$11.99	1	$11.99
Thermalright SP-94	$61.99	1	$61.99
ZALMAN 92mm Fan	$10.00	1	$10.00
Cable, WireTie, Screw/etc	$16.91	1	$16.91
Windows XP-J Home Edition OEM	$175.00	1	$175.00
	PC Only		$1,329.17
BenQ FP767-v2 17"	$417.00	1	$417.00
SanDisk ImageMate 8 in 1 USB 2.0 Reader/Writer	$5.00	1	$5.00
	Total		$1,751.17

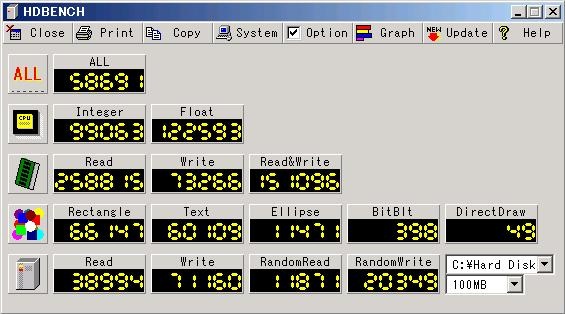

[Benchmarking] As I wrote first, RAID0 was something wrong. Write performance is middle of between normal IDE drive's and normal RAID0's, and READ performance is below even normal IDE's. I guess there is some sort of internal bus collision because of IEEE1394 problem is existed too under this RAID0 structure.
Anyway, final status with normal IDE drive is looking good. Especially, RAM performance is really good.

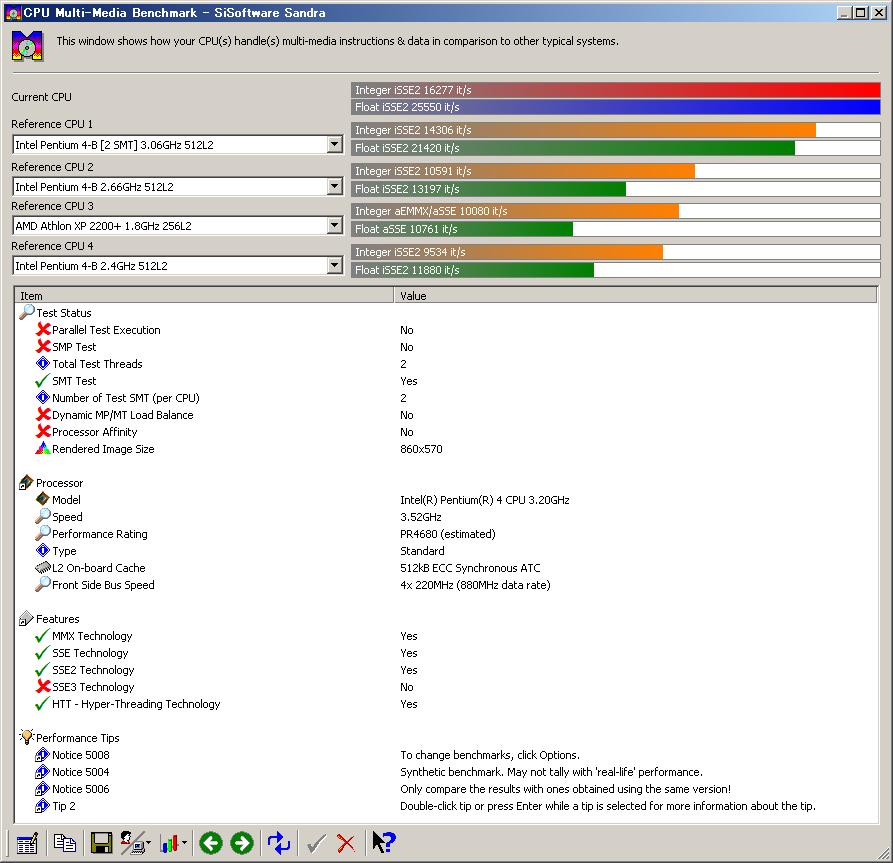

Finally, I decided to go with IDE, Performance/Turbo Mode, RAM timing tuned and OC3.52GHz (220MHz).

	P4-3.2C	P4-3.2C	P4 3.2C	P4 3.2C	P4 3.2C
	KVR400X64C3AK2/512	KVR400X64C3AK2/512	KVR400X64C3AK2/512	KVR400X64C3AK2/512	KVR400X64C3AK2/512
	WD1200JBx2	RAID0 WD1200JBx2	RAID0 WD1200JBx2	WD1200JBx2	WD1200JBx2
	WinXP Home with HT	WinXP Home with HT	WinXP Home with HT	WinXP Home with HT	WinXP Home with HT Perf/Turbo

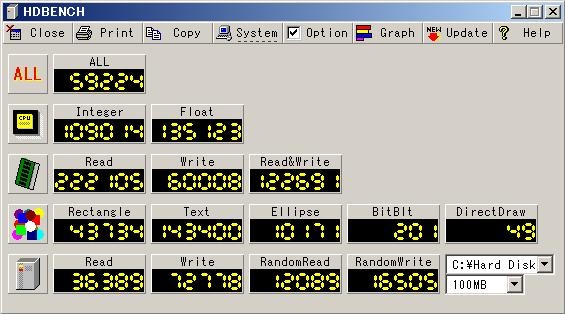

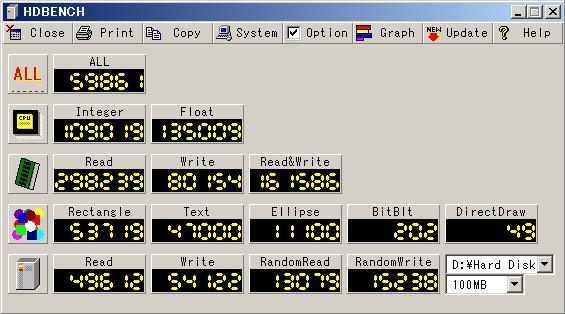

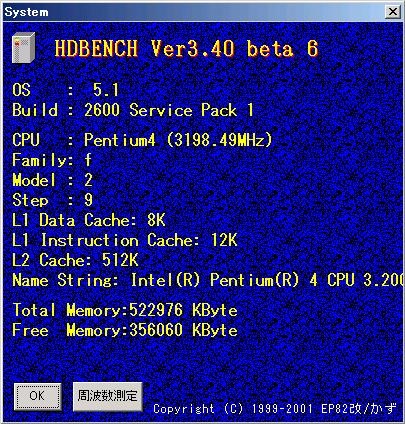

*HDBENCH*			OC10%(3.52G)	OC10%(3.52G) Perf/Turbo	OC3.52G(220) 2.5-6-4-4
ALL	55965	58691	59224	59861	60463
Integer	99066	99063	109014	109019	109020
Float	122967	122593	135123	135009	134927
Read	259378	258815	222105	298239	297778
Write	72703	73266	60008	80154	80268
ReadWrite	146534	151096	122691	161586	163123
Rectangle	53000	66147	43734	53719	54400
Text	48000	60109	143400	47000	47362
Ellipse	10540	11471	10171	11100	11100
BitBlt	202	398	201	202	201
DirectDraw	49	49	49	49	59
Read	50000	38994	36389	49612	51560
Write	54584	71160	72778	54122	55501
RandomRead	13106	11871	12089	13079	14002
RandomWrite	14759	20349	16505	15238	15030

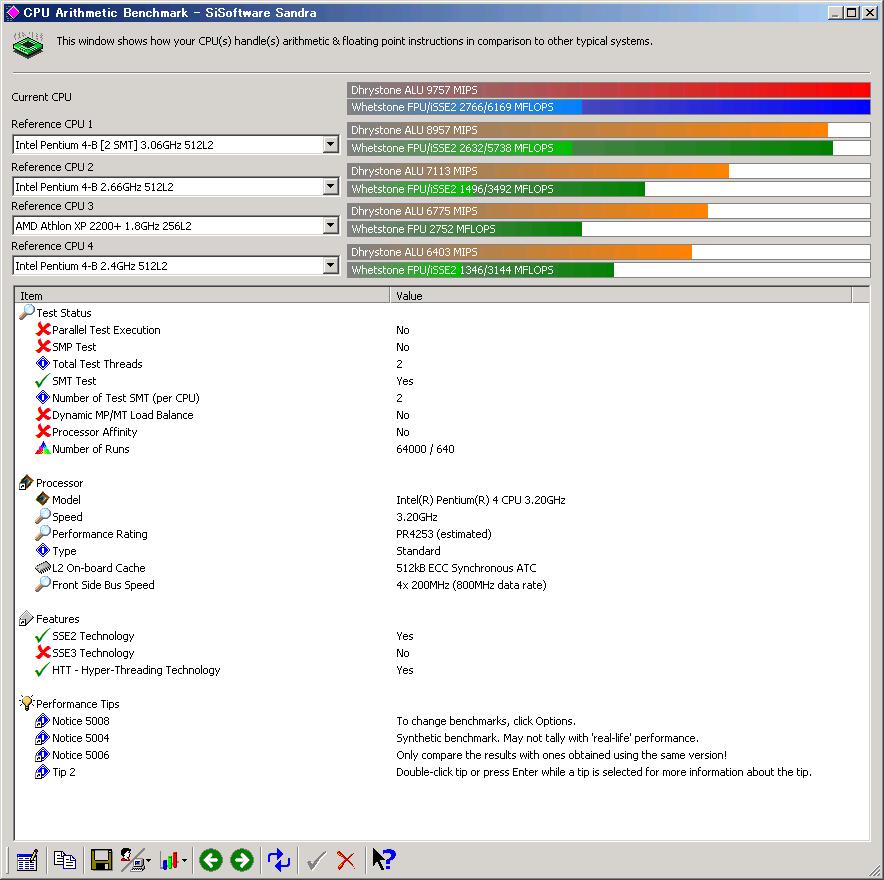

*SANDRA*

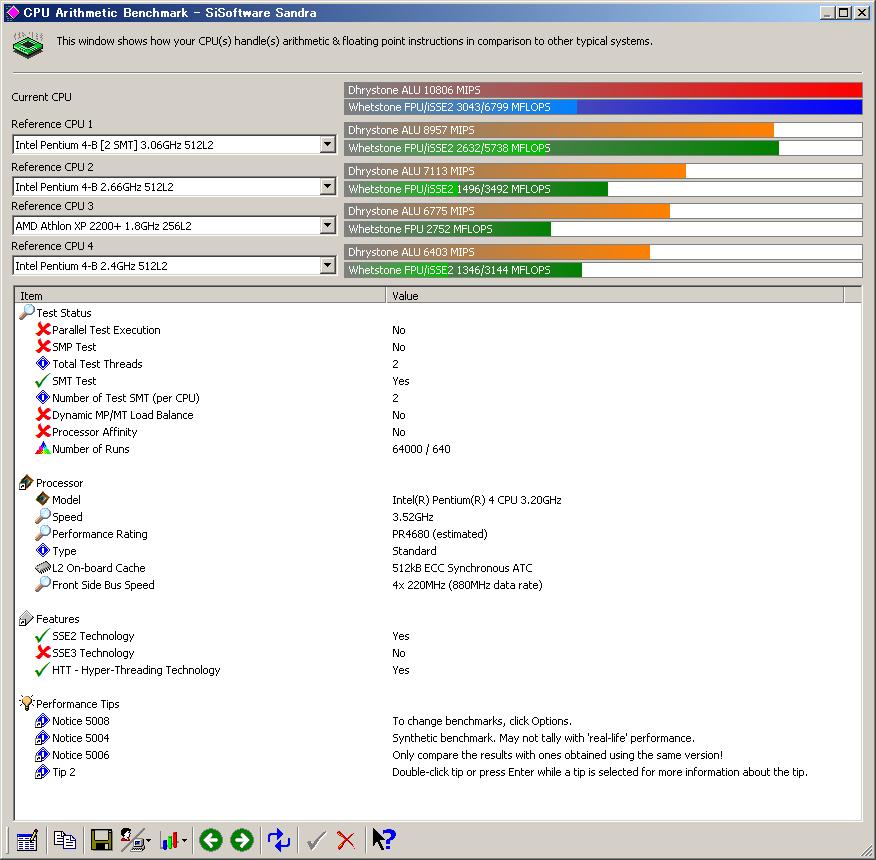

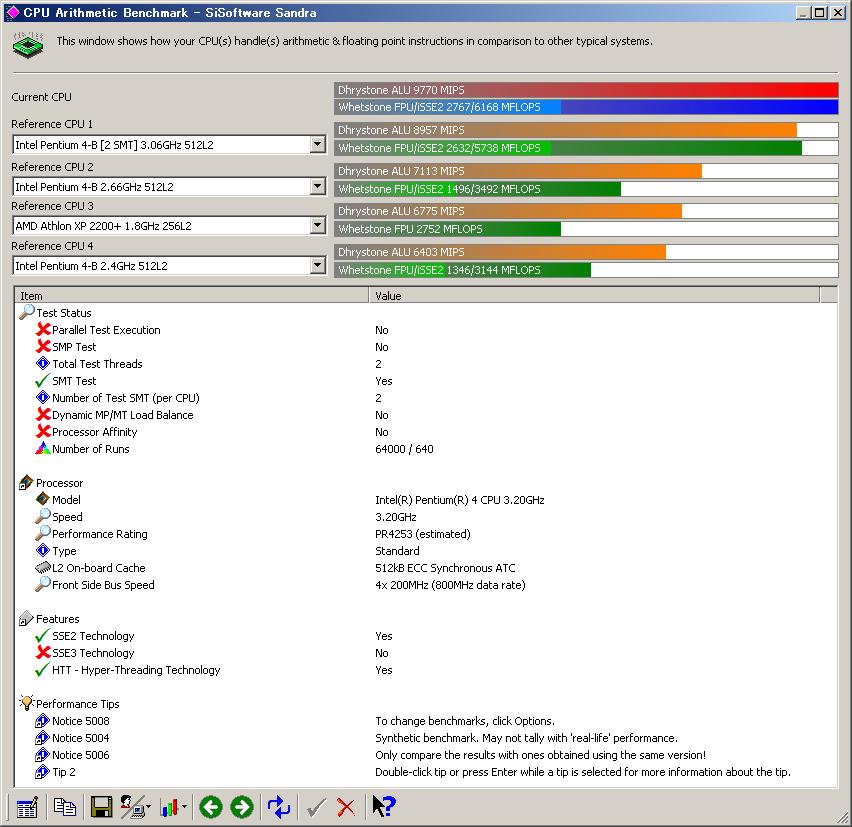

Dhrystone ALU (MIPS)	9770	9757	10382	10746	10806
Whetstone FPU (MFLOPS)	2767	2766	3045	3044	3043
Whetstone iSSE2 (MFLOPS)	6168	6169	6802	6838	6799

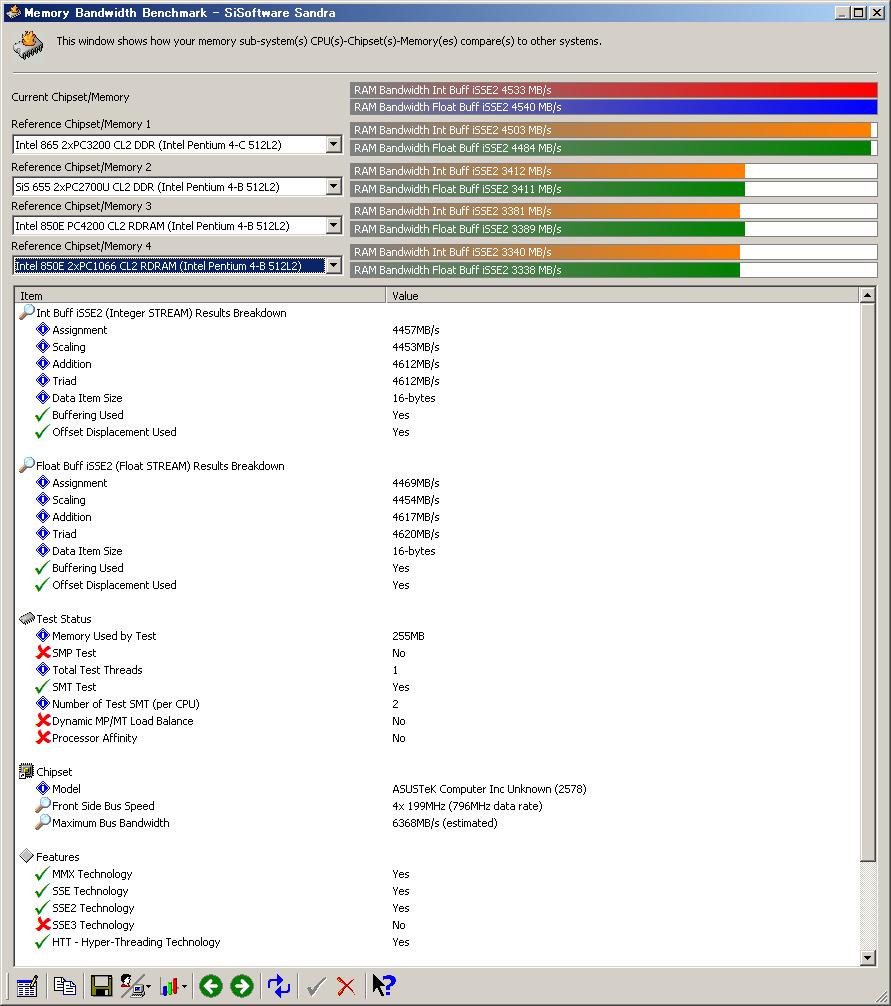

Int Buff iSSE2 (MB/s)	4533	4547	4100	4101	5195
Float Buff iSSE2 (MB/s)	4540	4539	4097	4109	5187

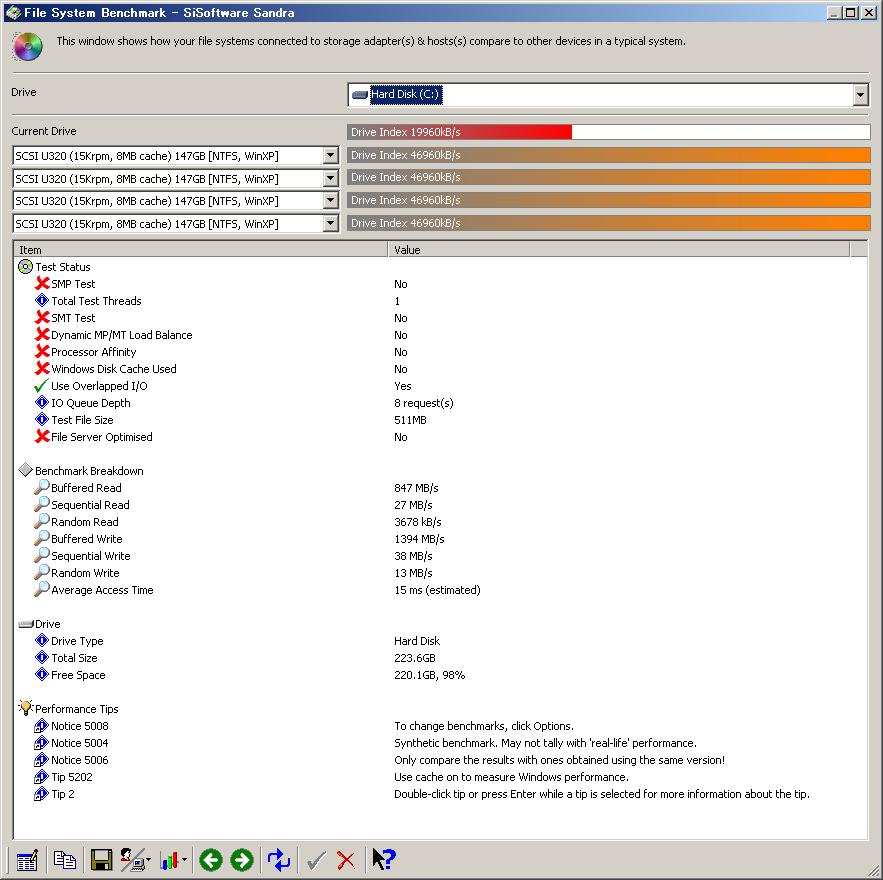

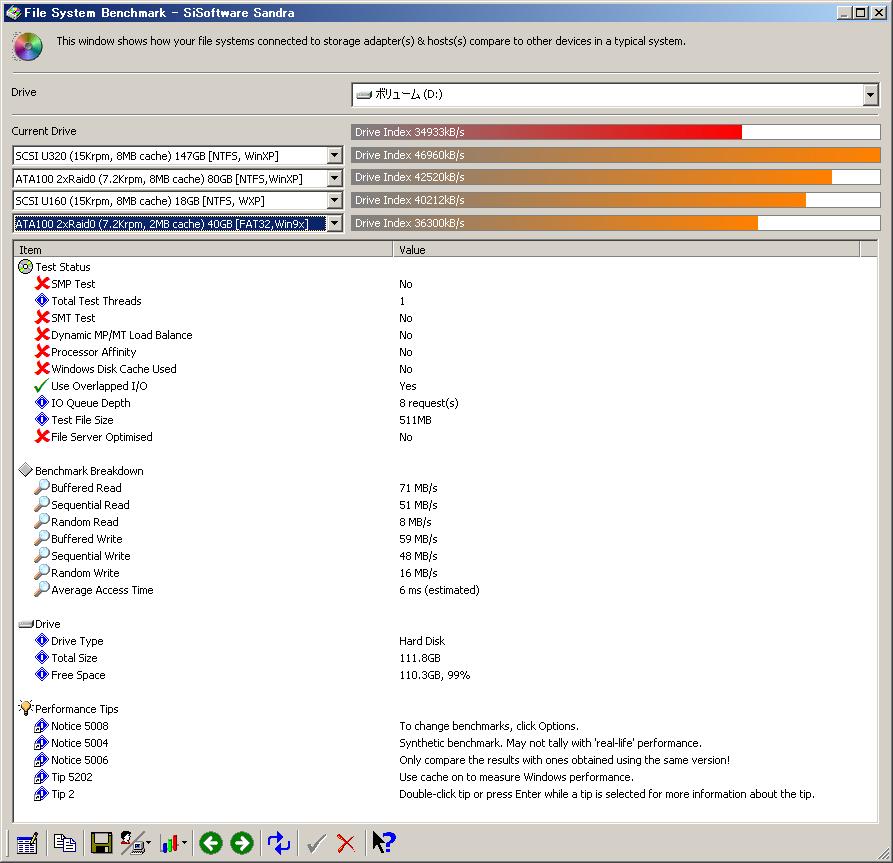

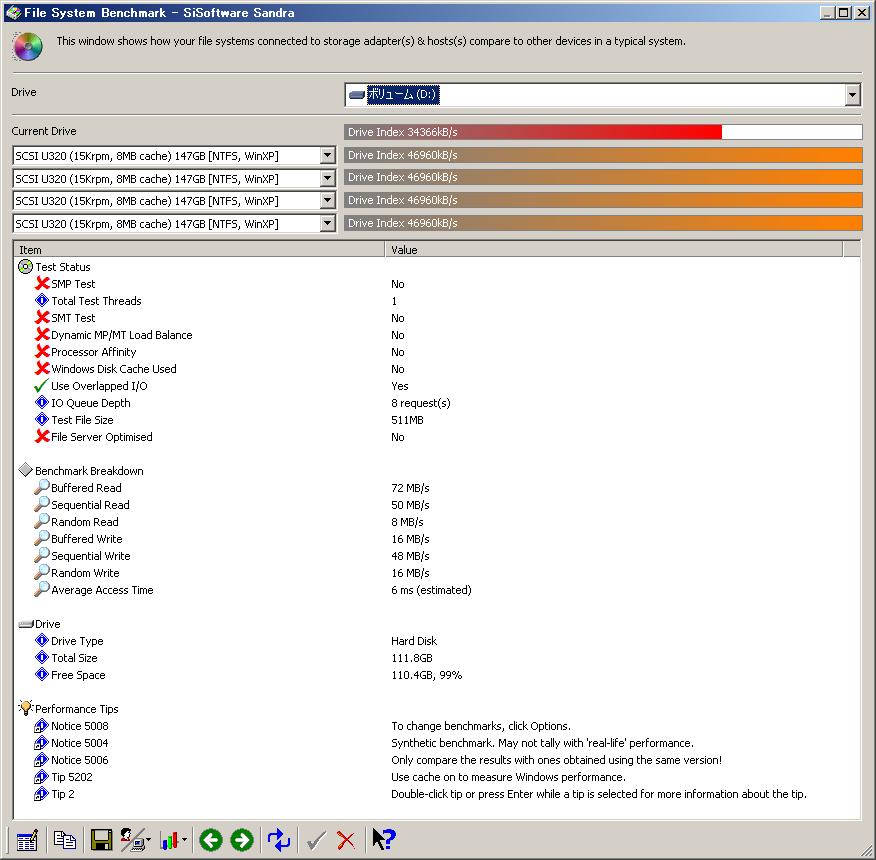

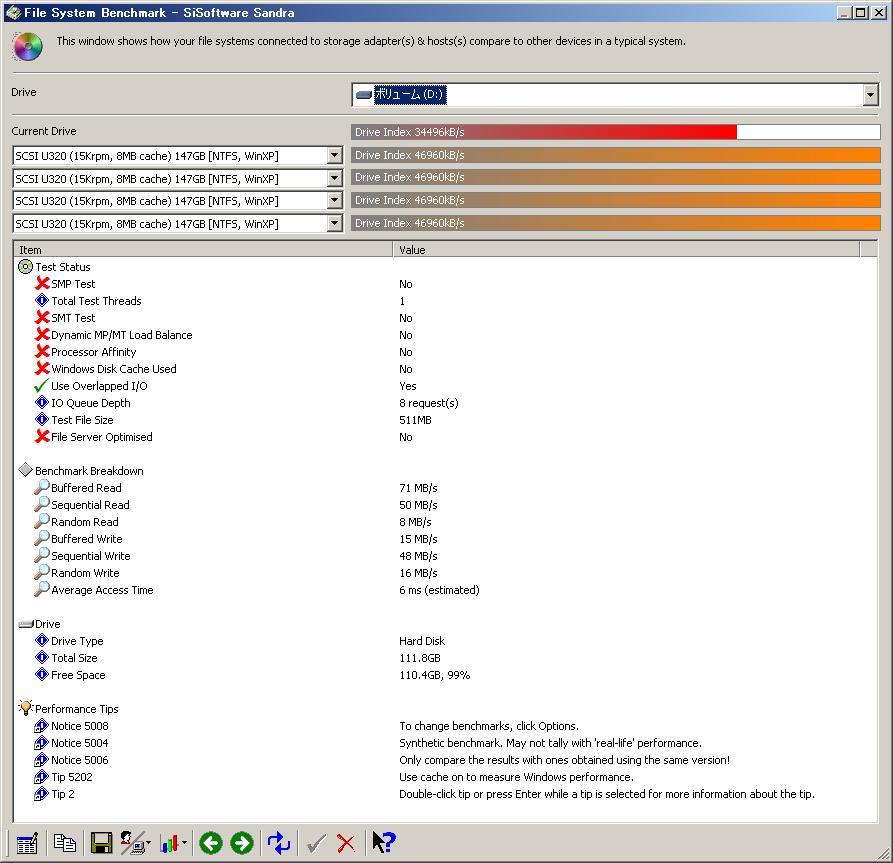

Drive Index (kB/s)	34496	24296	19960	34366	34933
Buffered Read (MB/s)	71	936	847	72	71
Sequential Read (MB/s)	50	33	27	50	51
Random Read (MB/s)	8	3913	3678	8	8
Buffered Write (MB/s)	15	1329	1394	16	59
Swquential Write (MB/s)	48	46	38	48	48
Random Write (MB/s)	16	14	13	16	16
Average Access Time (ms)	6	14	15	6	6
*DV-AVI 6min 1.3GB Rending*
MovieMaker2	363	333	331	363	330
WindowsMediaEncorder	1650	1627	1650	1539	1493

P4-3.2C IDE
P4-3.2C RAID0 Performance/Turbo
P4-3.2C RAID0 OC10% Performance/Turbo
P4-3.2C IDE OC10% Performance/Turbo
P4-3.2C IDE OC3.52GHz/220MHz Perf/Turbo 2.5-6-4-4
