Gigabyte 8IG1000MK (P4-2.8C+)

This is a mid-range PC. 8IG1000MK is new to me, and cost-performance is really good for mid-range PC.
After I built this, it really good combination. Especially, RAM is worth. Even it's cheap RAM, but there is no problem up to 15% OC on mem86 test (2.5-4-4-6 @400MHz and 3-4-4-8 @460MHz). Finally, I set up with 10% OC.

* This case has IEEE-1394 connector and two audio connectors on the right side of front vessel, however they are no connection. Only two audio connectors can be connected changing on the motherboard setting and connection.

P4-2.8C	$179.00	1	$179.00
GA-8IG1000MK	$95.75	1	$95.75
Kingston ValueRAM KVR400AK2/512R	$75.69	1	$75.69
Western Digital WD1200JBRTL (120GB 8MB Cashe)	$77.79	1	$77.79
MAD DOG Dominator 4-in-1 MD-5216CDR	$34.19	1	$34.19
Floppy Disk ALPS DF354H168F	$11.99	1	$11.99

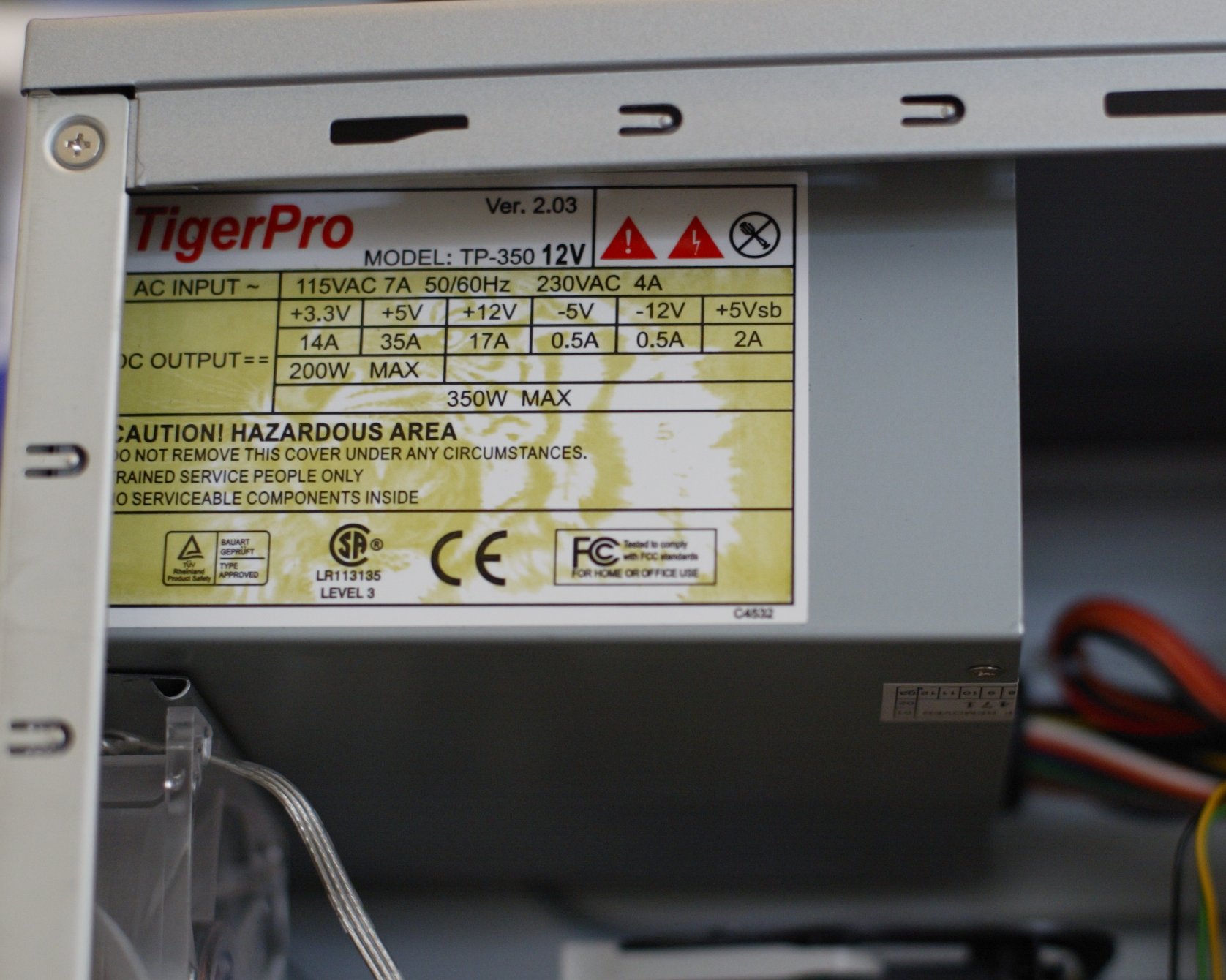

POWMAX "CPATX 8870 SLVR" with 400W	$42.00	1	$42.00
Cable/Fan/etc	$15.00	1	$15.00
Windows XP-J Home OEM	$186.55	1	$186.55
	PC Total		$717.96
D-Link 4PORT ROUTER DI-604	$22.99	1	$22.99
	Total		$740.95

[Benchmarking]

This results are good as a cost-performance version, I think.

	Gigabyte 8IG1000MK	Gigabyte 8IG1000MK	Gigabyte 8IG1000MK
	P4 2.8C	P4 2.8C	P4 2.8C
	KVR400AK2/512R	KVR400AK2/512R	KVR400AK2/512R
	WD1200JB	WD1200JB	WD1200JB
	WinXP Home with HT	WinXP Home with HT	WinXP Home with HT

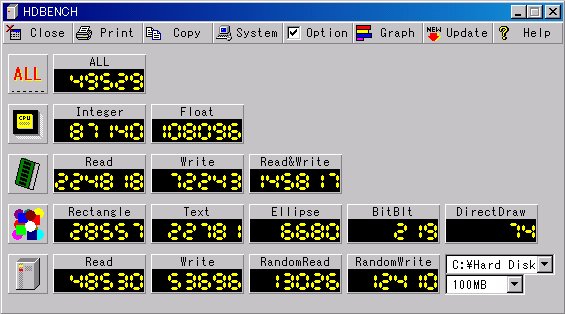

*HDBENCH*	CAS2.5-4-4-6	OC3.087 CAS3-4-4-8	OC3.227 CAS3-4-4-8
ALL	49529	50861	52247
Integer	87140	95613	99962
Float	108096	118340	123505
Read	224818	234905	245298
Write	72243	68815	71935
ReadWrite	145817	135741	142233
Rectangle	28557	30978	32400
Text	22781	25122	24105
Tellipse	6680	7274	7600
BitBlt	219	134	144
DirectDraw	74	75	74
Read	48530	48165	47828
Write	53696	53696	53250
RandomRead	13026	13001	12624
RandomWrite	12410	13131	13651

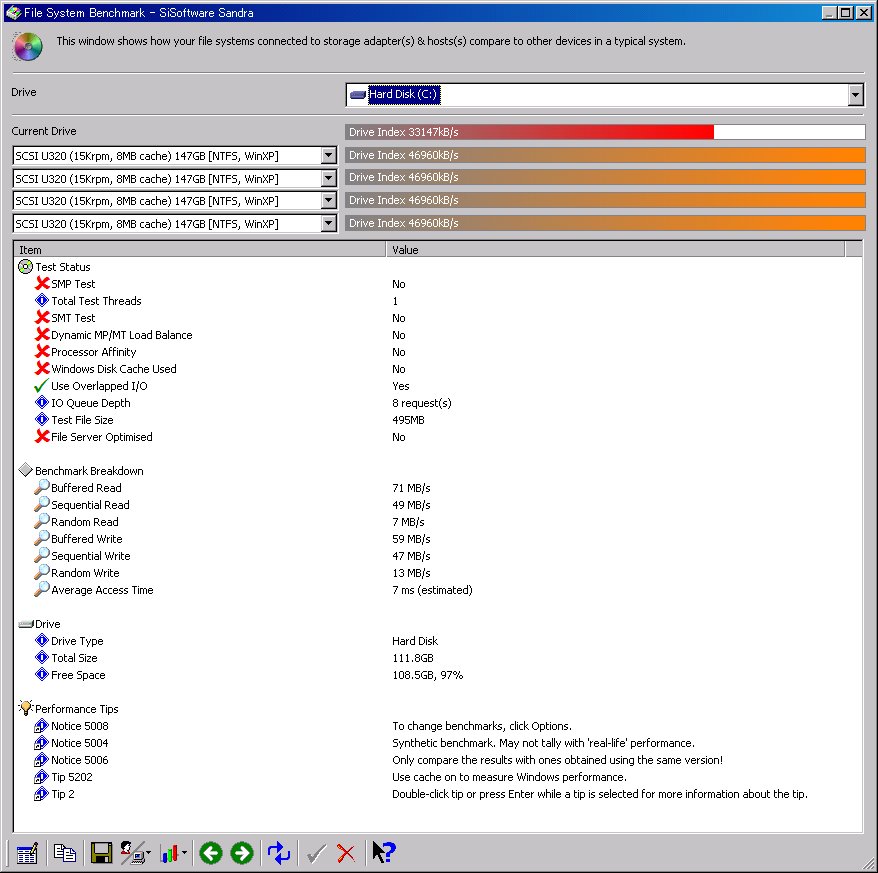

*SANDRA*
Dhrystone ALU (MIPS)	8604	9574	10040
Whetstone FPU (MFLOPS)	2434	2670	2790
Whetstone iSSE2 (MFLOPS)	5453	5964	6234

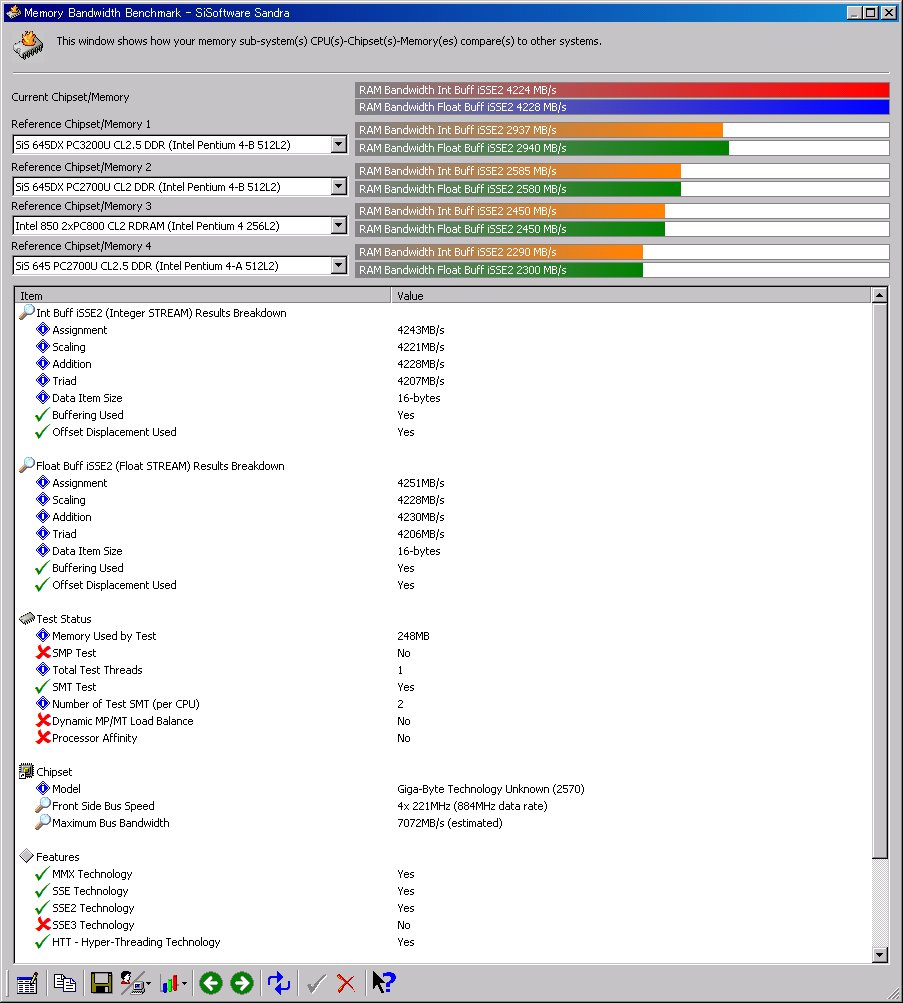

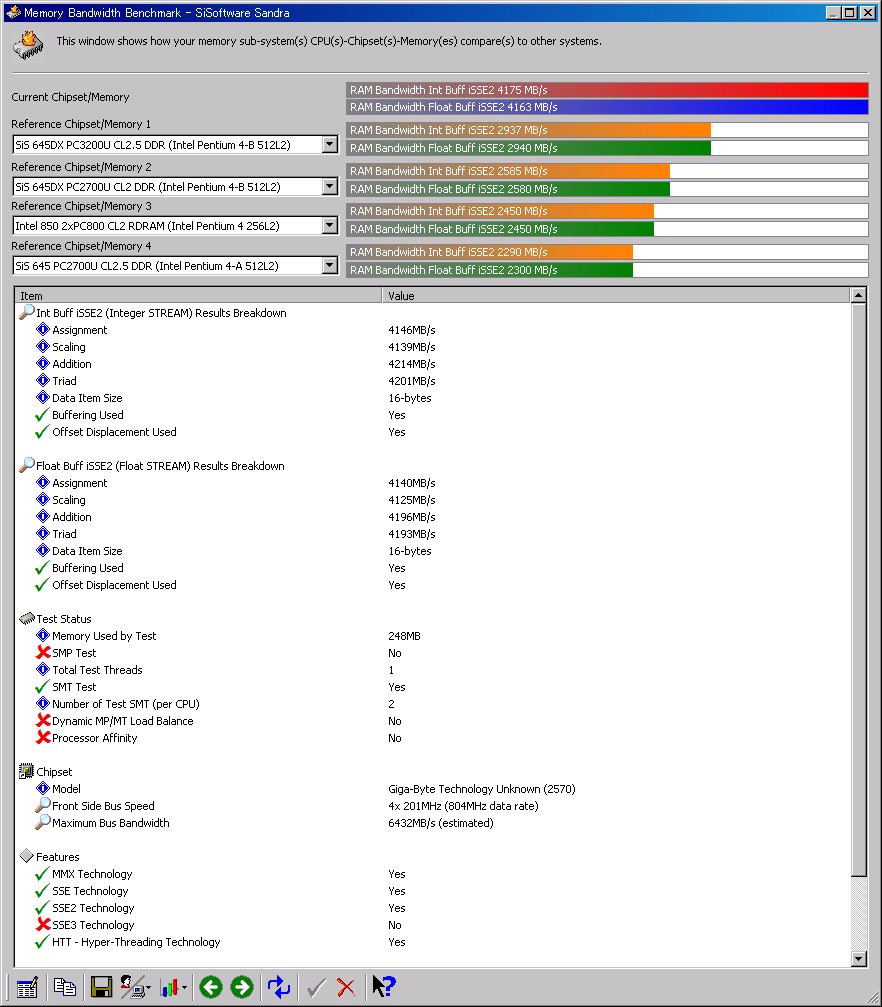

Int Buff iSSE2 (MB/s)	4175	4224	4424
Float Buff iSSE2 (MB/s)	4163	4228	4423

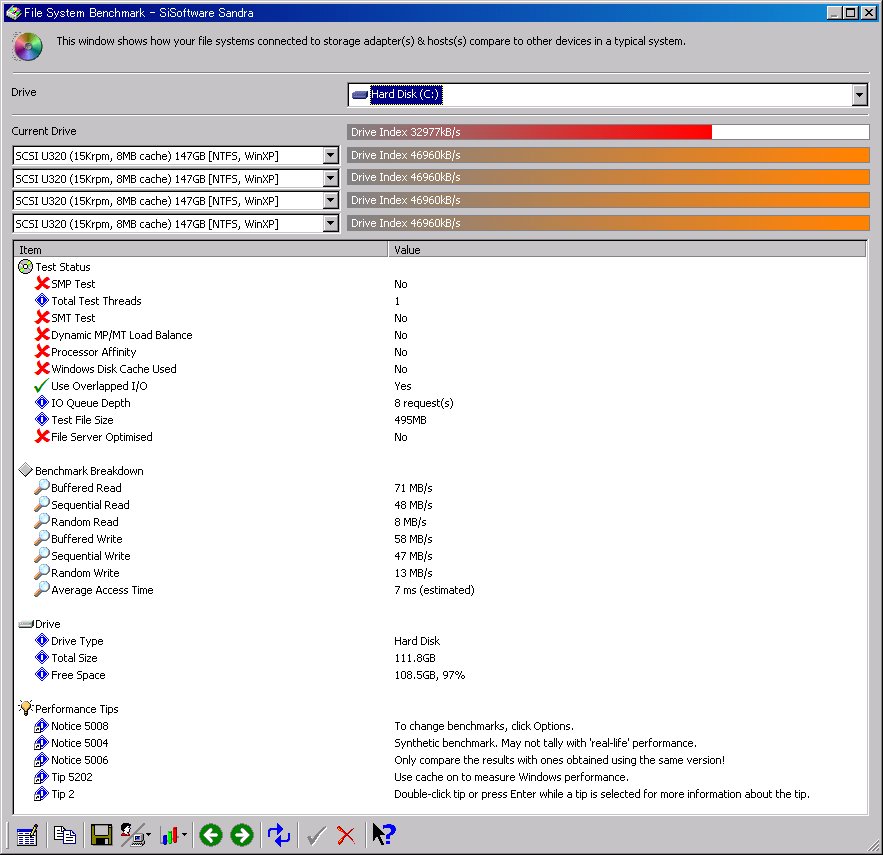

Drive Index (kB/s)	33147	32977	33020
Buffered Read (MB/s)	71	71	72
Sequential Read (MB/s)	49	48	48
Random Read (MB/s)	7	8	8
Buffered Write (MB/s)	59	58	58
Swquential Write (MB/s)	47	47	47
Random Write (MB/s)	13	13	13
Average Access Time (ms)	7	7	7
*DV-AVI 6min 1.3GB Rending*
MovieMaker2	407	382	365
WindowsMediaEncorder	1884	1734	1643

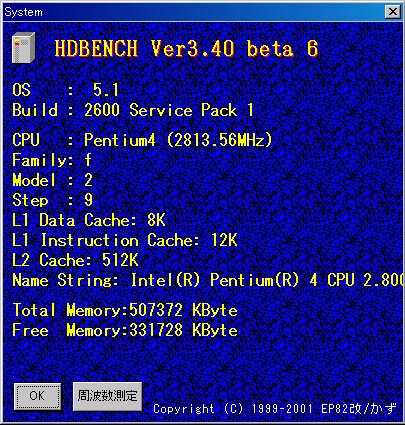

P4-2.8C Normal

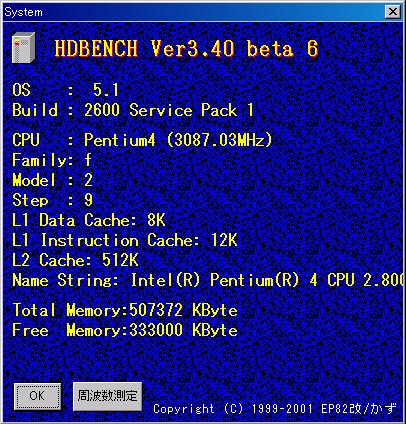

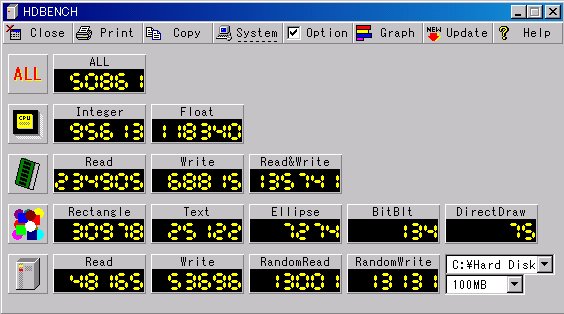

P4-2.8C 3.087GHz/440MHz

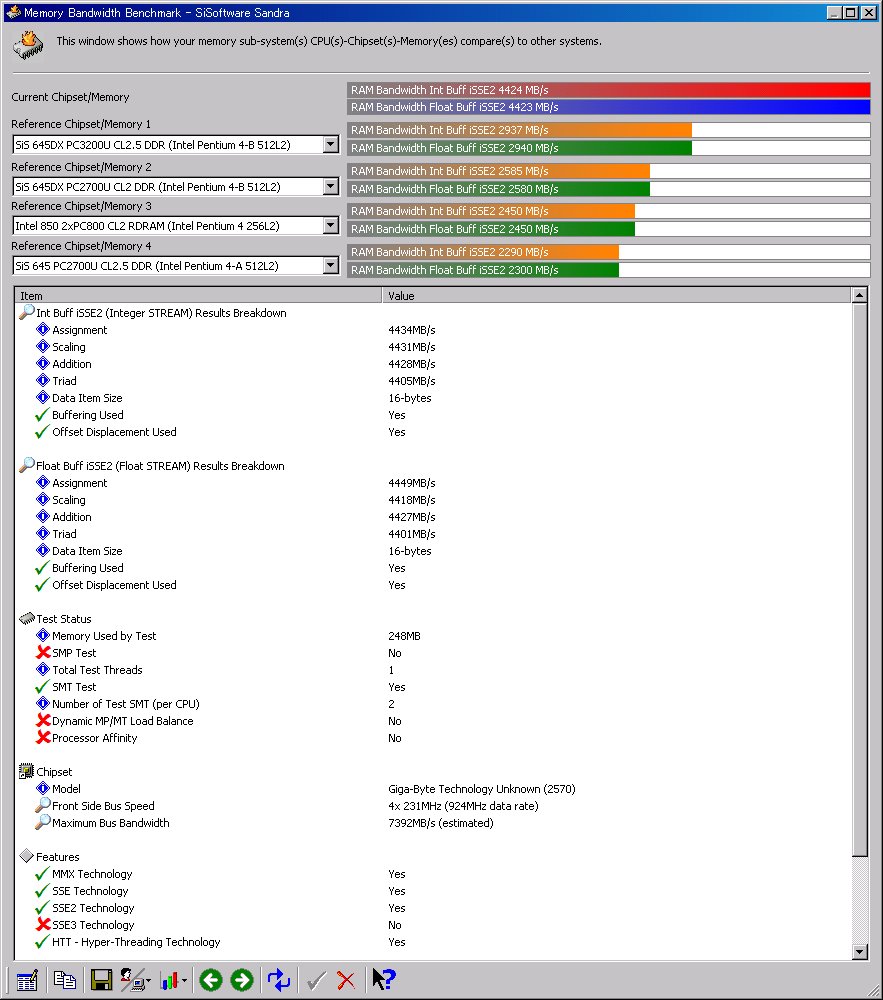

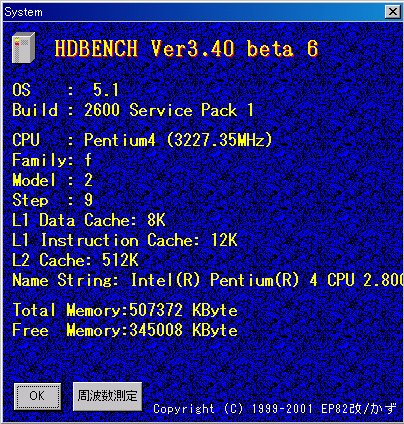

P4-2.8C 3.227GHz/460MHz
