ASUS P4C800 Deluxe(P4-2.53G/FSB533)

I made Pentium4 2.53GHz using ASUS P4C800, but it's FSB=533MHz.
ASUS P4C800 Deluxe, Pentium4-2.53GHz, HD:100GB, RAM:PC2700 256MBx2, USB2.0 LAN, Serial/Pararell Port, DVD+/-RW 4x, CD-RW, FD, Windows XP Professional.
It's upgradable to FSB=800MHz, PC3200x2, AGP8x, ATA & SATA RAID. It will be done later. Anyway, I will watch on the price for P4 FSB800MHz in 875P project.

[Reference]

FSB	DDR Type	Memory Frequency
800MHz	PC3200,PC2700*,PC2100	400MHz,333*MHz,266MHz
533MHz	PC2700,PC2100	333MHz,266MHz
400MHz	PC2100	266MHz

*:Memory Frequency will be 320MHz using PC2700 under FSB=800MHz according to Chipset spec.

Description	Price	Qty	Total
Intel Pentium 4 2.53GHz	$190.50	1	$190.50
Kingston KVR333X64C25/256 256MB PC2700	$35.00	2	$70.00
P4C800 Deluxe(Dual DDR/RAID/1394/LAN/FSB800)	$204.95	1	$204.95
AGP 4x GeForceMX420 64MB	$59.00	1	$59.00
HD WD1000BB (100GB)	$111.00	1	$111.00
CD ROM	$0.00	1	$0.00
Sony Internal DVD+/-RW Drive DRU500AX	$335.00	1	$335.00
FD	$21.19	1	$21.19
Case + PowerSupply Antec SLK2600AMB	$74.19	1	$74.19
Misc(FANx2, CD Audio Cable, WireTie, Screw/etc)	$37.52	1	$37.52
	Final Spec		$1,103.35

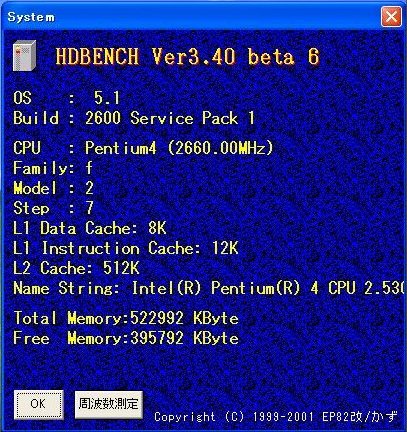

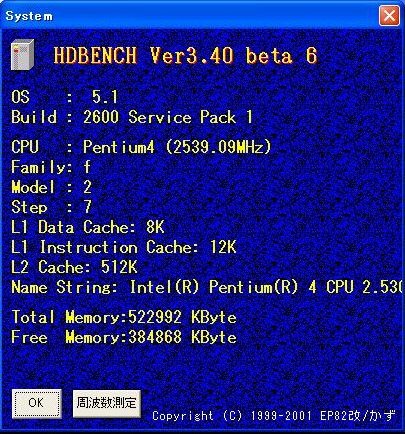

HDBENCH Ver3.40 beta6
Memory speed was little disappointed, because of it's just 10% faster than PC2700. I don't know why it's happened, but I guess BIOS(This version is 1004) is not tuned well for FSB533MHz or memory couple is not good.

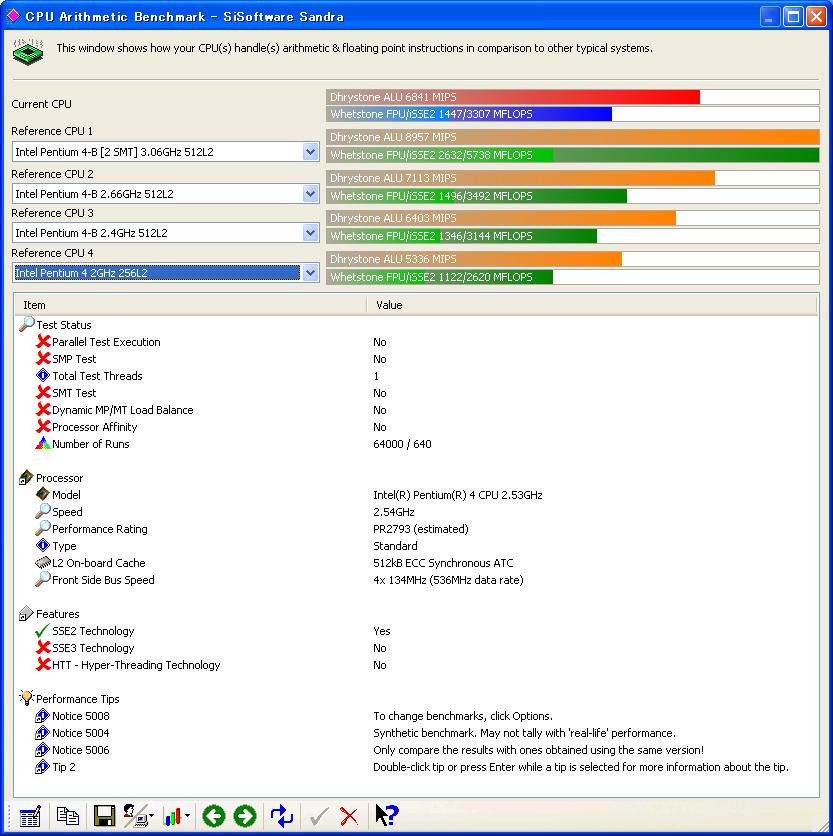

Sandra2003

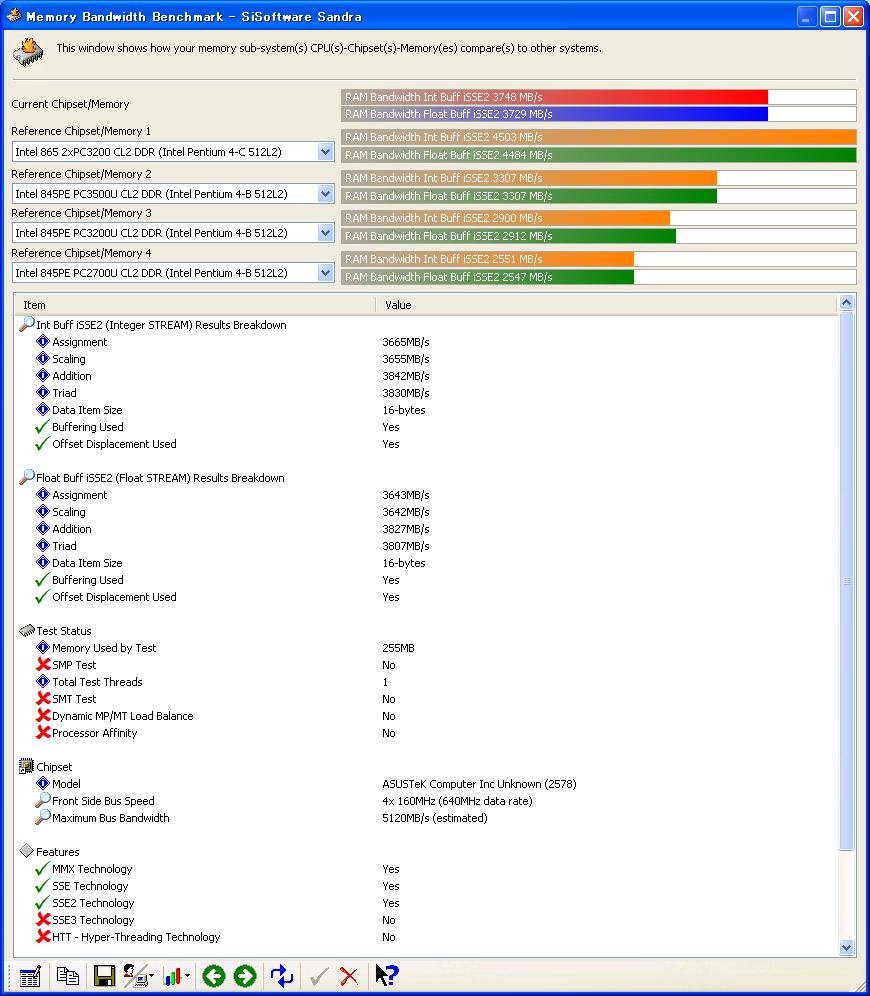

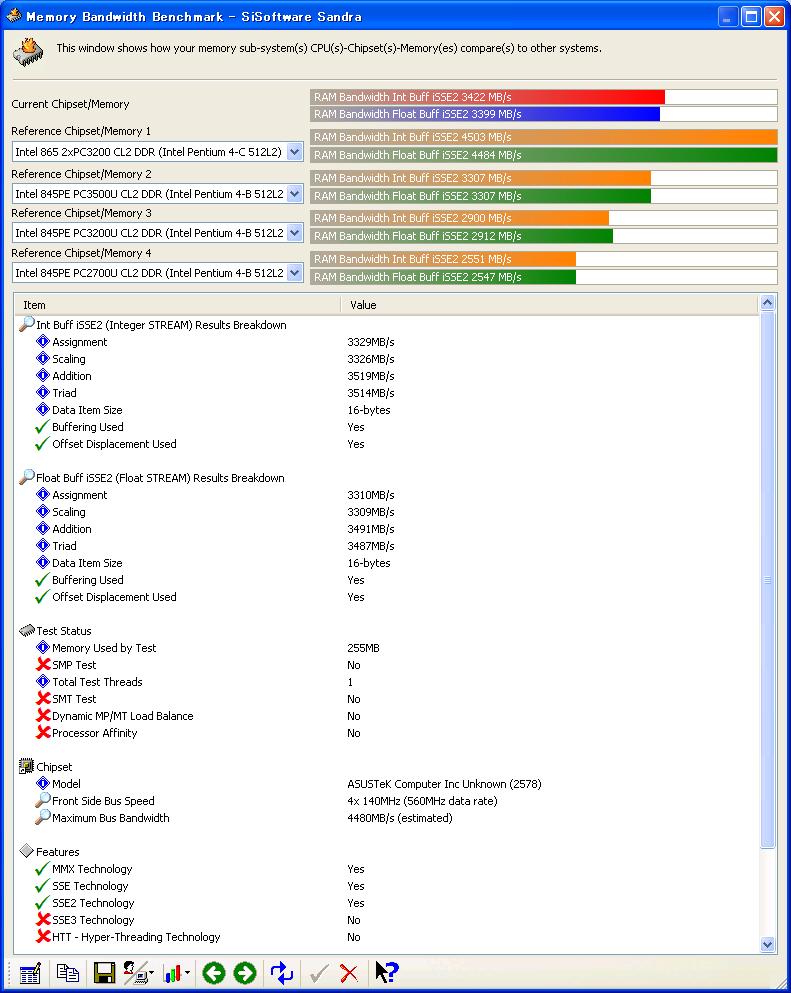

Regarding to the result of Sandra2003, memory speed was same result as HDBENCH. it's around 3.2MB/s, just 19% faster. My expectation was 30% to 35% faster. Well, I am looking forward to releasing new BIOS(1005 or later).

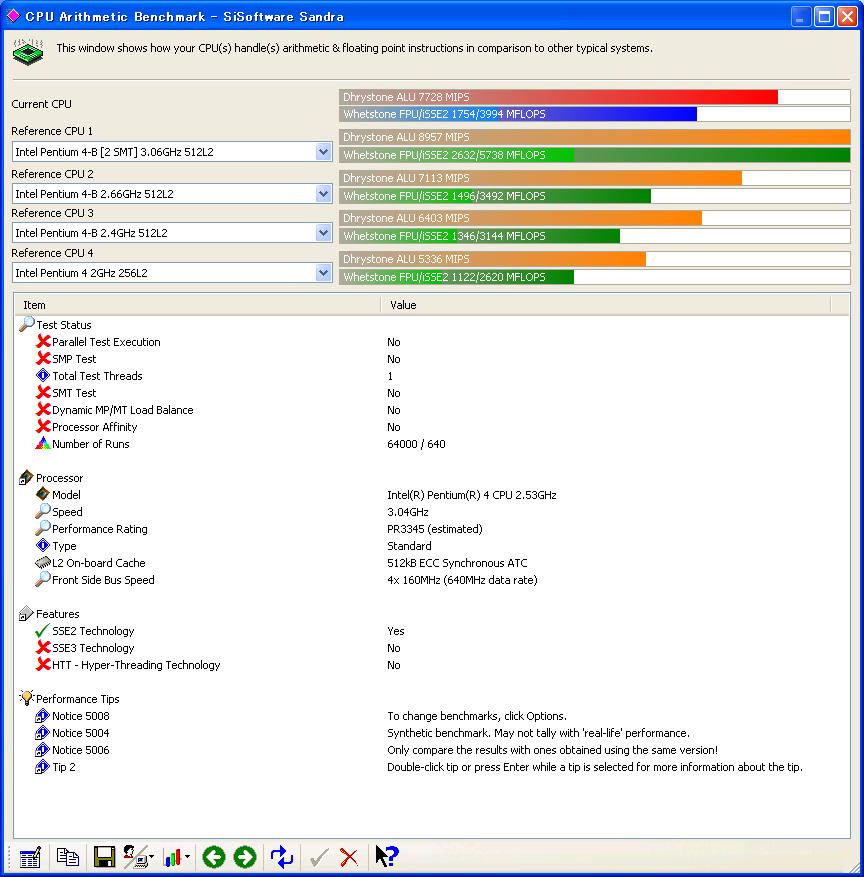

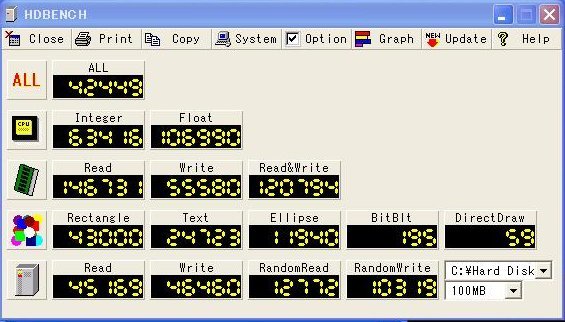

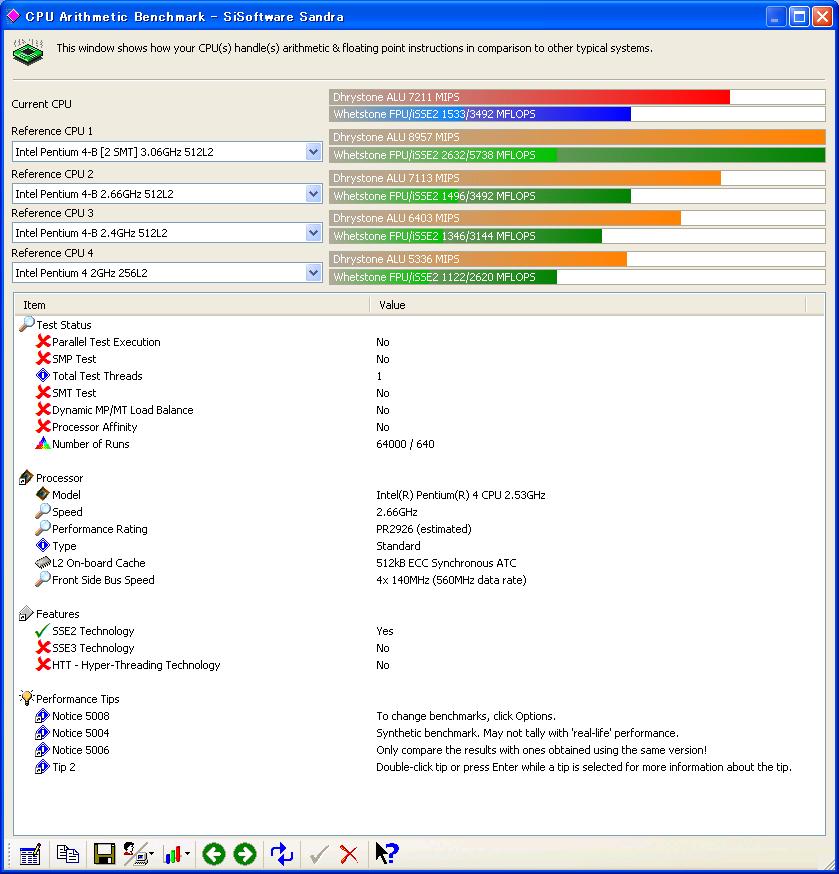

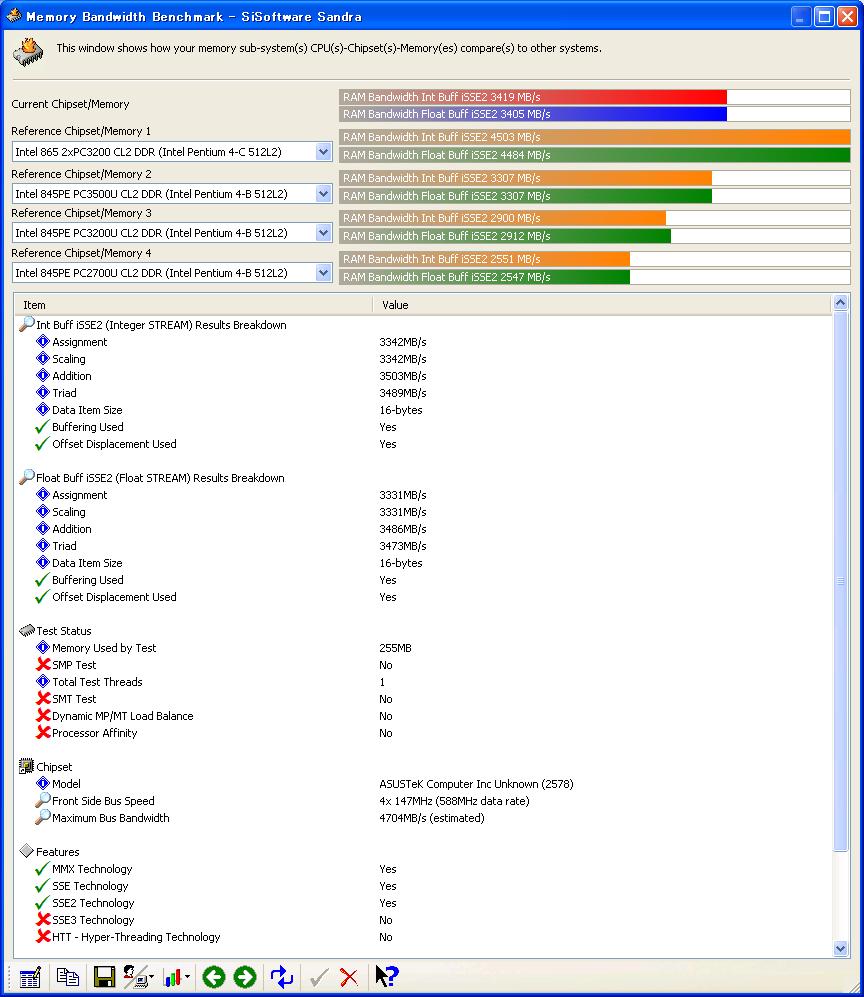

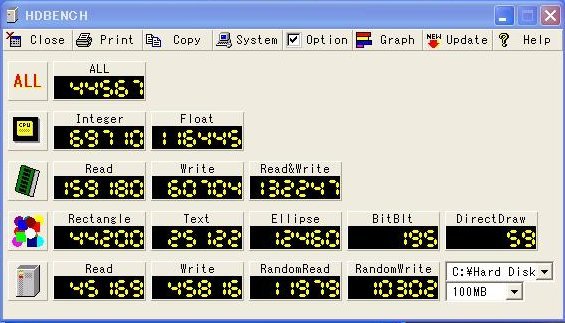

This P4C800 Deluxe has easy-to-use overclocking function in BIOS, to select +5%, +10%, +20% and +30%. I checked +5% to +20% using HDBENCH & Sandra2003.
I'm not sure about the structure, but CPU & Memory speed are reasonable, but the others are not big differences.

*HDBENCH*	Normal	OC5%	OC10%	OC20%
ALL	40121	42292	42449	44567
Integer	57572	60947	63416	69710
Float	96945	102175	106990	116445
Read	135024	141204	146731	159180
Write	57269	60903	55580	60704
ReadWrite	122830	128984	120794	132247
Rectangle	42765	43534	43000	44200
Text	24180	24523	24723	25122
Tellipse	11260	11640	11940	12460
BitBlt	195	195	195	195
DirectDraw	59	59	59	59
Read	43097	44872	45169	45169
Write	44560	46460	46460	45816
RandomRead	9402	12649	12772	11979
RandomWrite	10223	10452	10318	10302
*SANDRA*
Dhrystone ALU (MIPS)	6841	7211	7512	7728
Whetstone FPU (MFLOPS)	1447	1533	1594	1745
Whetstone iSSE2 (MFLOPS)	3307	3492	3645	3994
Int Buff iSSE2 (MB/s)	3243	3422	3419	3748
Float Buff iSSE2 (MB/s)	3259	3399	3405	3729
Drive Index (kB/s)	25989	26505	26231	26397
Buffered Read (MB/s)	83	85	84	85
Sequential Read (MB/s)	37	37	37	37
Random Read (MB/s)	7	8	7	7
Buffered Write (MB/s)	78	78	78	78
Sequential Write (MB/s)	41	41	40	41
Random Write (MB/s)	9	9	9	9
Average Access Time (ms)	7	7	7	7

P4-2.53 Normal
P4-2.53 (2.66G)
P4-2.53 (2.79G)
P4-2.53 (3.04G)
