ASUS P4BGL-MX (Celeron-2.2GHz+)

I am planning to make new PC using P4BGL-MX with Celeron-2.2GHz FSB=400MHz, as "Cost-Performance PC".
And, I set up 5% Overclocking, CPU=2.31GHz and FSB=420MHz.

[Reference]

Description	Price	Qty	Total
Celeron 2.2GHz	$73.00	1	$73.00
KVR266X64C25/128	$25.50	2	$51.00
P4BGL-MX(DDR/LAN/Video)	$61.50	1	$61.50
Hitachi Deskstar 180GXP 120GB 8MB	$107.00	1	$107.00
8x6x12 CDRW	$0.00	0	$0.00
FD	$14.50	1	$14.50
Case + PowerSupply	$41.00	1	$41.00
Windows XP-J Home Edition OEM	$172.00	1	$172.00
Misc(FANx2, CD Audio Cable, WireTie, Screw/etc)	$24.00	1	$24.00
	Final Spec		$544.00

[Benchmarking]

This results are good as a cost-performance version so far, I think.

	ASUS P4BGL-MX	ASUS P4BGL-MX
	Celeron-2.2GHz	Celeron-2.3GHz
ALL	25750	27292
Integer	50877	52946
Float	85200	88975
Read	93336	98530
Write	32744	33205
ReadWrite	69815	68177
Rectangle	12930	13118
Text	7547	(61000)
Tellipse	3677	3654
BitBlt	57	60
DirectDraw	37	37
Read	38309	22831
Write	8110	9839
RandomRead	12089	12316
RandomWrite	4457	4608

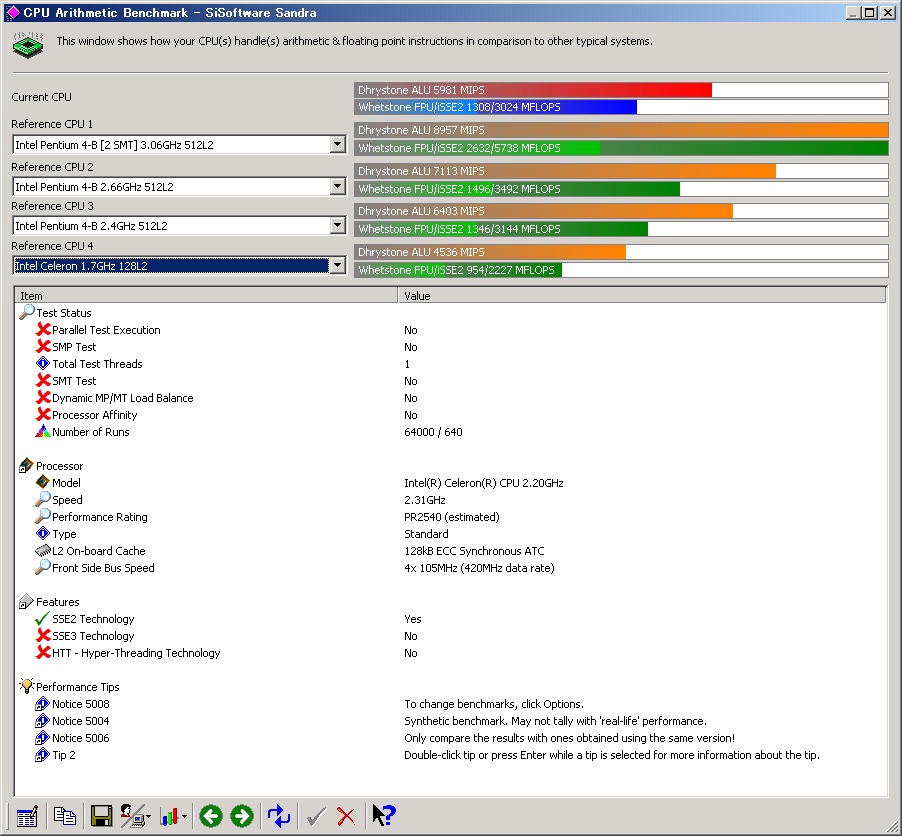

*SANDRA*
Dhrystone ALU (MIPS)	5657	5981
Whetstone FPU (MFLOPS)	1256	1308
Whetstone iSSE2 (MFLOPS)	2903	3024
Int Buff iSSE2 (MB/s)	1568	1637
Float Buff iSSE2 (MB/s)	1656	1736

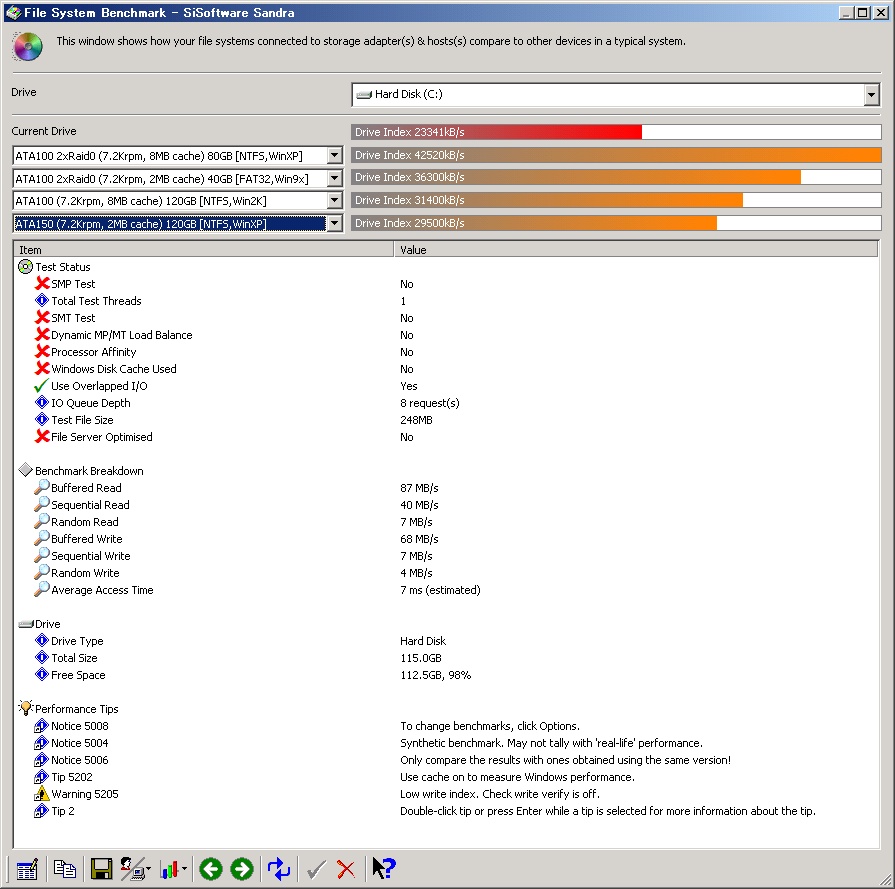

Drive Index (kB/s)	23341	23536
Buffered Read (MB/s)	87	87
Sequential Read (MB/s)	40	40
Random Read (MB/s)	7	7
Buffered Write (MB/s)	68	62
Swquential Write (MB/s)	7	9
Random Write (MB/s)	4	4
Average Access Time (ms)	7	7

C-2.2G Normal
C-2.2G 5% 2.31G
